AKH-0.66/G Current Transformer

AKH-0.66/G

•Rated operation voltage AC 0.66kV(Equivalent AC 0.63kV,GB156-2017)

•Rated frequency 50-60Hz

•Ambient air temperature -30℃-70℃

•Power frequency withstand voltage 3000v/1min 50Hz

Product Details
Quotation

General

The appearance is nice and the wiring is convenient. The transparent polycarbonate material is selected for the flip.We can clearly see thesecondary lead wiring. They are generally used with electrical measuring instruments, widely used in electrical sets

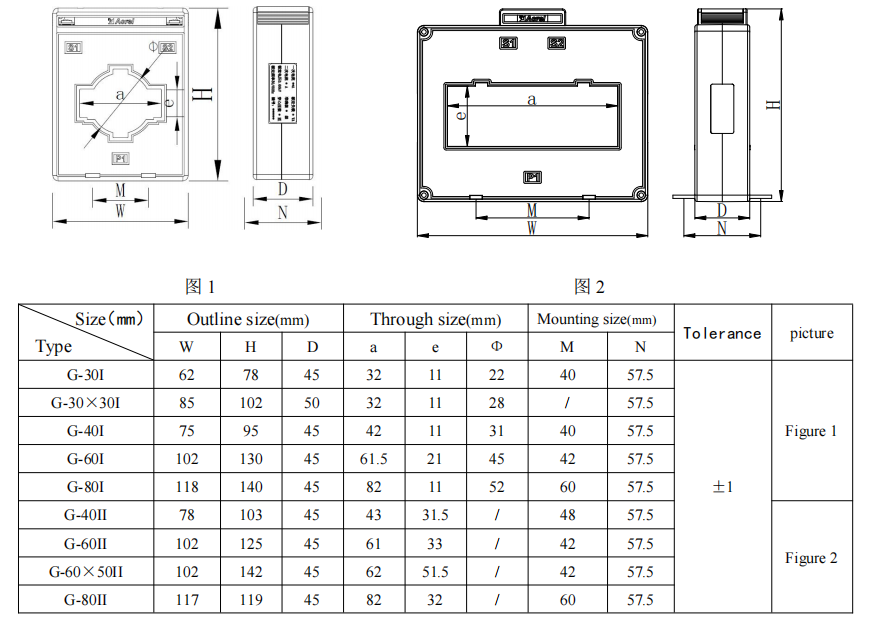

Dimension

Installation

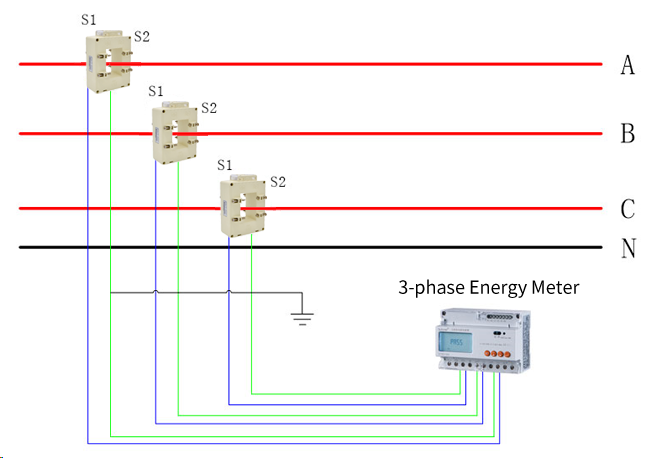

Wiring

Application


Chemical Factory	Power Station	Steel Mill	Metallurgical Factory
