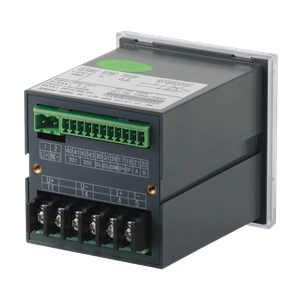

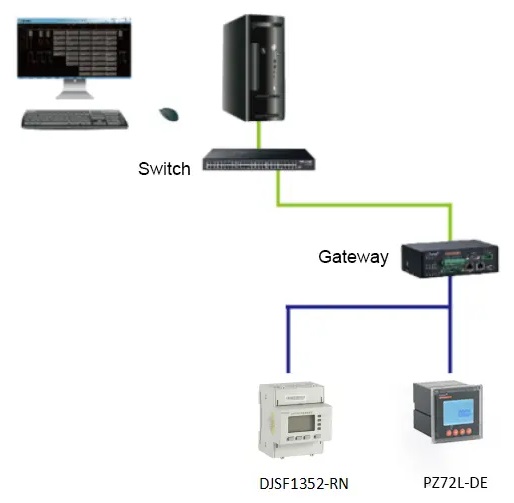

PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power, forward and reverse power in DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for the user to choose.
Direct access:0~100V, 0~500V, 0~1000V
Hall Current Sensor
1.2 times (normal), 2 times/second (continued)
750V、300A; 1000V、300A; 1000V、200A; Default pulse constant: 100imp/kWh
Current total electricity, Current positive energy, Current reverse power
PZ72: 2DO+2DI ; PZ96:2DO+4DI
LCD(the backlight delay time can be adjusted) or LED
RS485, Modbus-RTU / DL / T645-07, Band :1200/2400/4800/9600, infrared:1200
85~265VAC / DC、50/60Hz; 20~60VDC; 100~350VDC
≥ 100M Ω
Power frequency withstand voltage
Normal operating temperature: -25 °C ~ +60 °C;
Storage temperature: -20℃～+70℃
≤93%RH, no condensation, no corrosive gases
Package dimensions(1 PC)
Net Weight(1 PC)
WHOLE BOX PACKAGE
Package dimensions(24 PCS)
Package Weight(24 PCS)
PRODUCT HS CODE
The above packing and weight data are only refer to model PZ72L-DE.
For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
