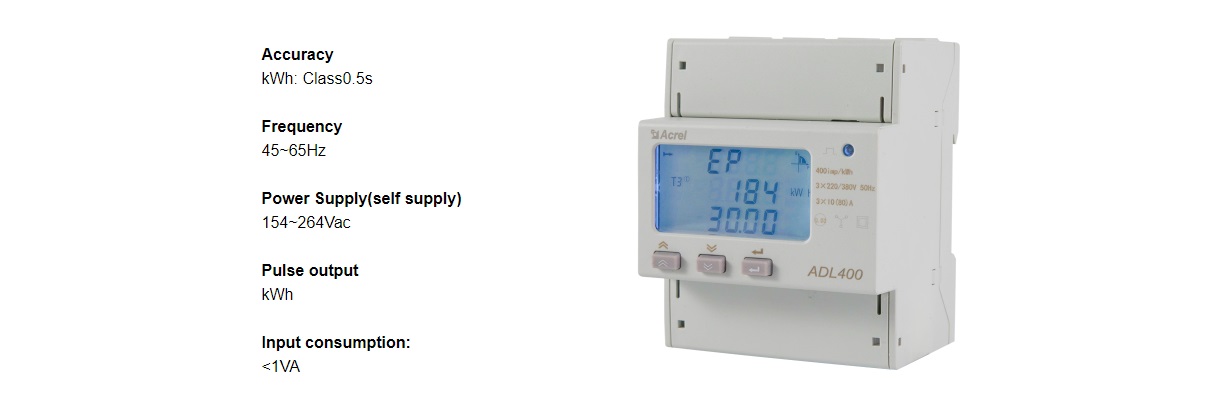

ADL400 Three-Phase Din Rail Energy Meter

ADL400


●AC220V

●3×1(6)A,3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 0.5

●DIN 35 mm


Description

General


ADL400 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.



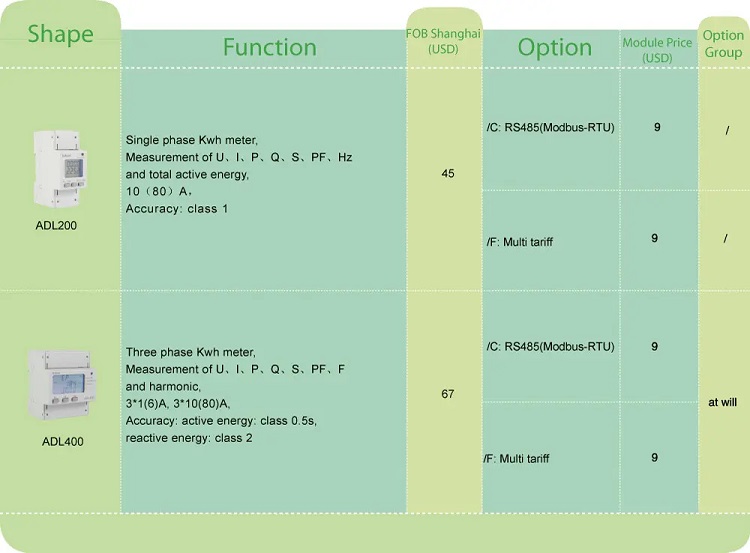

Functions





Technical Parameters

Voltage

Nominal voltage

AC 220V

Nominal frequency

50Hz

consumption

<10VA

Current

Maximum current

80A

Starting current

0.01A

Consumption

<1VA

Measurement performance

Accuracy

kWh Class 0.5

Range

0~9999999999.99kWh

Clock

accuracy

Error ≤0.5s/d

Active pulse

width

80±20ms

constant

1000imp/kWh,10000imp/kWh

Communication

Interface

RS485

Protocol

MODBUS-RTU

Temperature range

Work

-25~55

Storage

-40~70

Humidity

≤95%(No condensation)

Altitude

<2000m

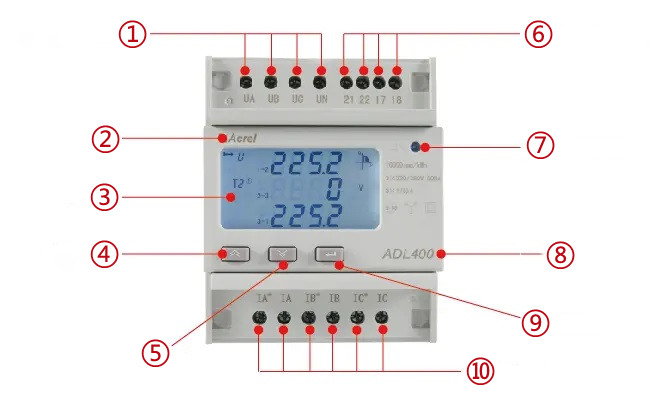

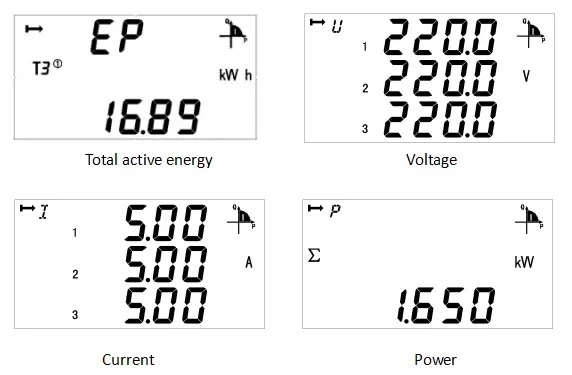

Display

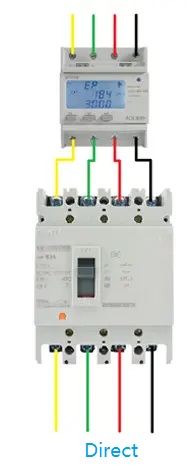

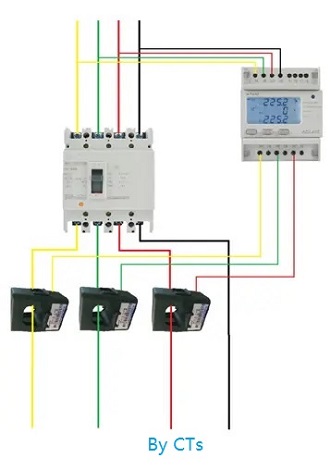

Wiring





① Voltage Enter-wire

② Brand

③ Panel

④ Up Button

⑤ Down Button

⑥ Auxiliary function

⑦ Pulse Output

⑧ Model

⑨ Set Button

⑩ CT Enter-wire

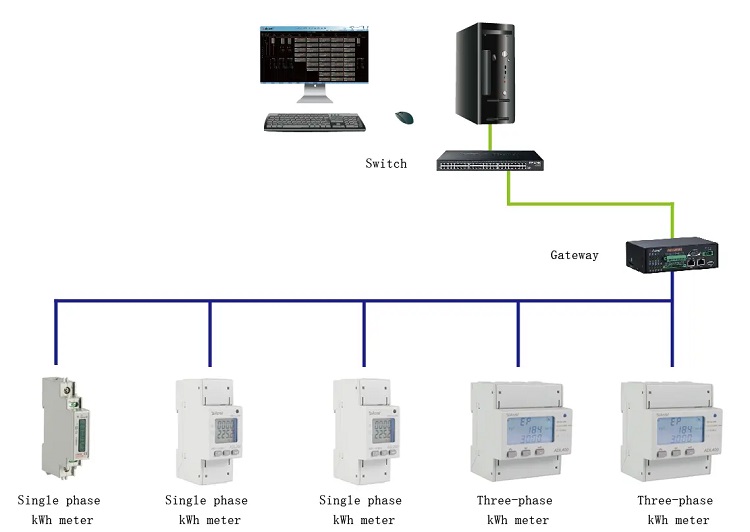

Network

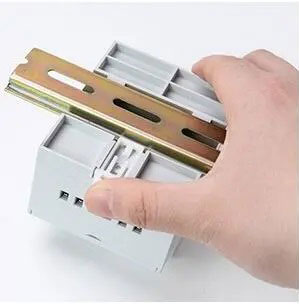

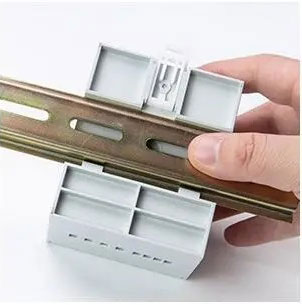

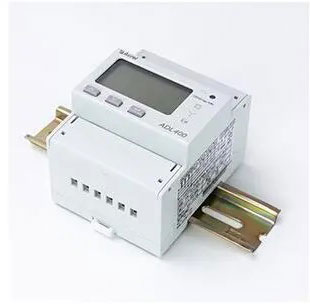

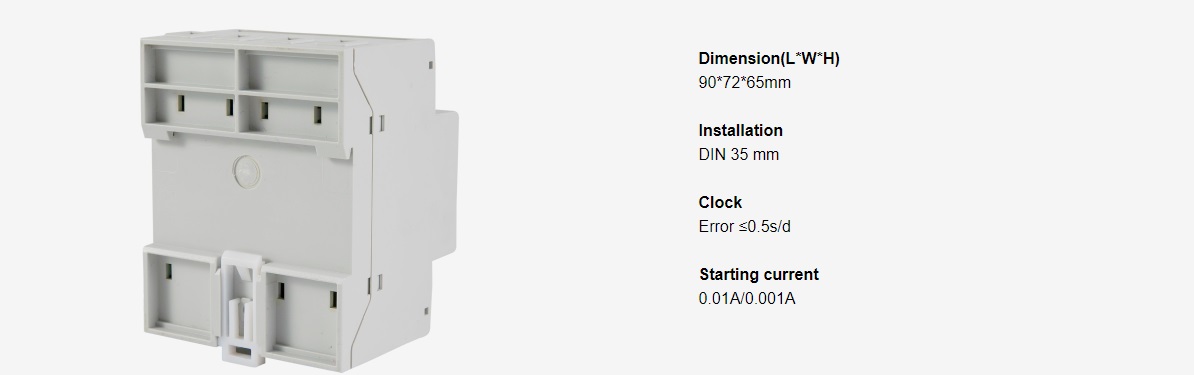

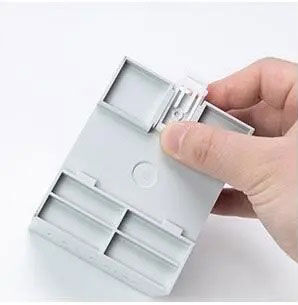

Installation








FAQ


QAfter the meter is powered on, the power or energy count is inaccurate.

ASwitch the meter display to the power (active power P, power factor λ) interface, and check whether the power display is negative or not. And whether the power factor is between 0.9-0.95, and then check whether the incoming and outgoing wires of the current signal wire are connected reversely (that is, the current The incoming wire must be the same as the incoming wire end of the instrument) and consistent with the wiring diagram on the instrument.

QThe instrument cannot communicate with the host computer normally after power on.

A1. The voltage value between the communication output A and B of the measuring instrument should be between +(4.4-4.5)V;

2. Check whether the communication wiring method is correctly wired in accordance with the wiring diagram requirements (that is, the communication terminal A/B of the corresponding to communication serial port A/B);




Package




MINIMUM PACKAGE







MINIMUM PAKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.5Kg


WHOLE BOX PAKAGE


Package dimensions(36 PCS)

450*240*250mm

Pakage Weight(36 PCS)

18.5kG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model ADL400.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
