AID10 Remote Alarm And Display Device

AID10


● Remote monitoring
● Mute button
● Test button
● Auxiliary power supply: DC24V
● RS485(MODBUS-RTU)




Description

General


AID Series alarm and display devices are remote display and audible and visible alarm devices. AID duplicates fault, alarm and operating message of monitoring devices. When fault occurs, AID gives audible and visible signal to medical staff and technical staff. Additionally, response value of AIM-M series monitoring device can be set by AID remotely. AID Series alarm and display device have three types: AID10, AID120 and AID150, which shall be arranged in operating room or nursing station so that it can be permanently monitored by medical staff.


Parameter



Auxiliary power

Voltage
DC24V
Consumption
0.6W
Alarm
Sound and light alarm
Alarm Type
Insulation fault, overload, over-temperature, equipment failure
Communication
RS485 interface, Modbus-RTU protocol

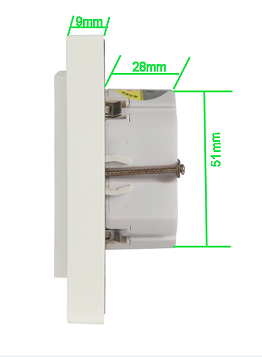

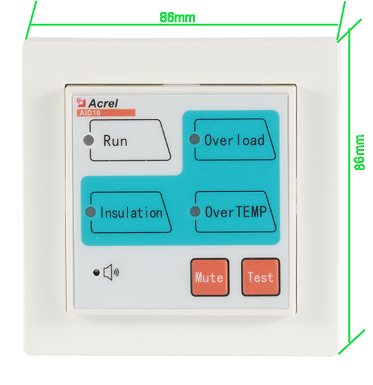

Dimension

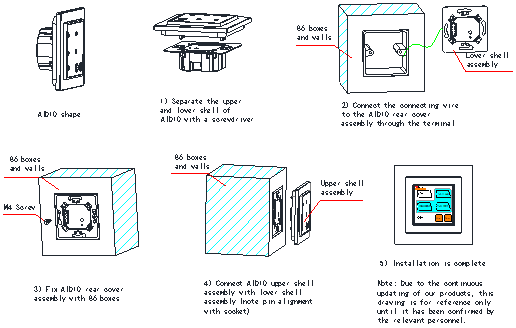

Installation



Typical Connection

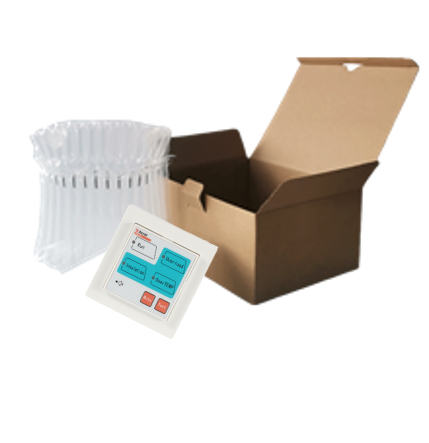

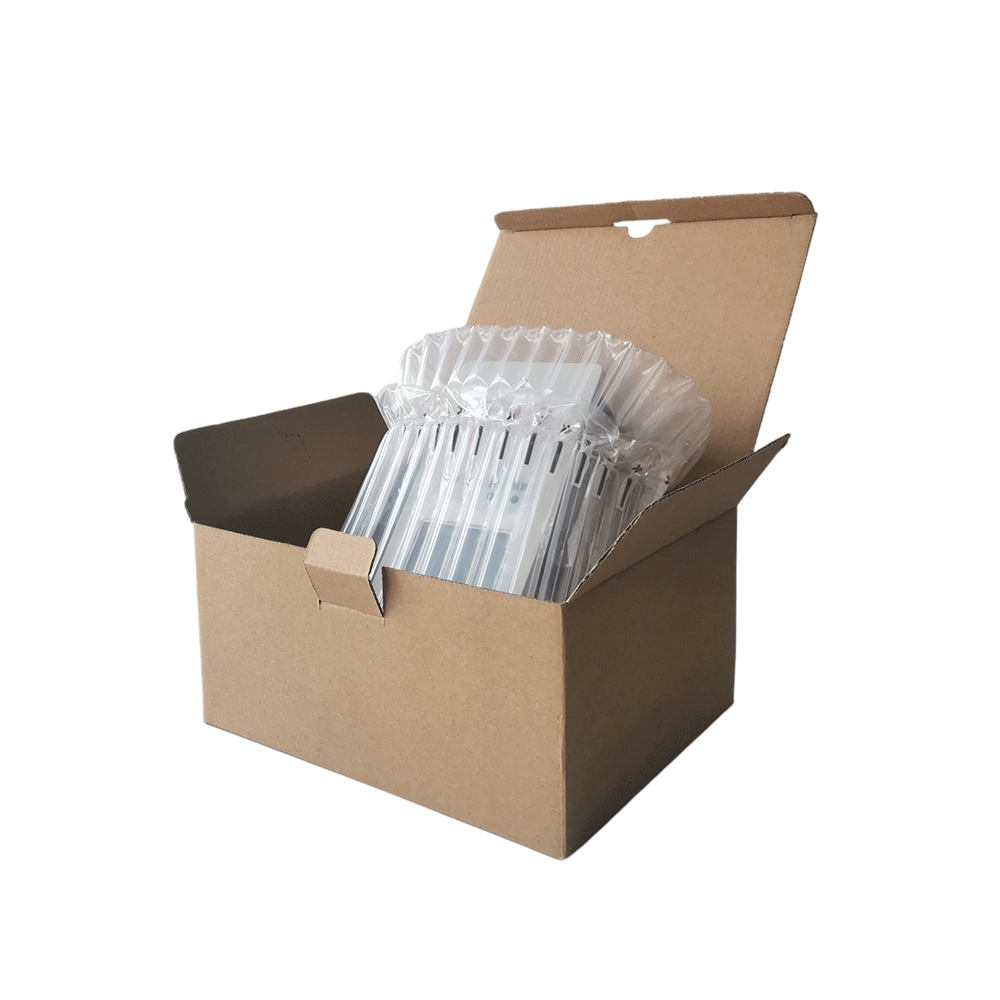

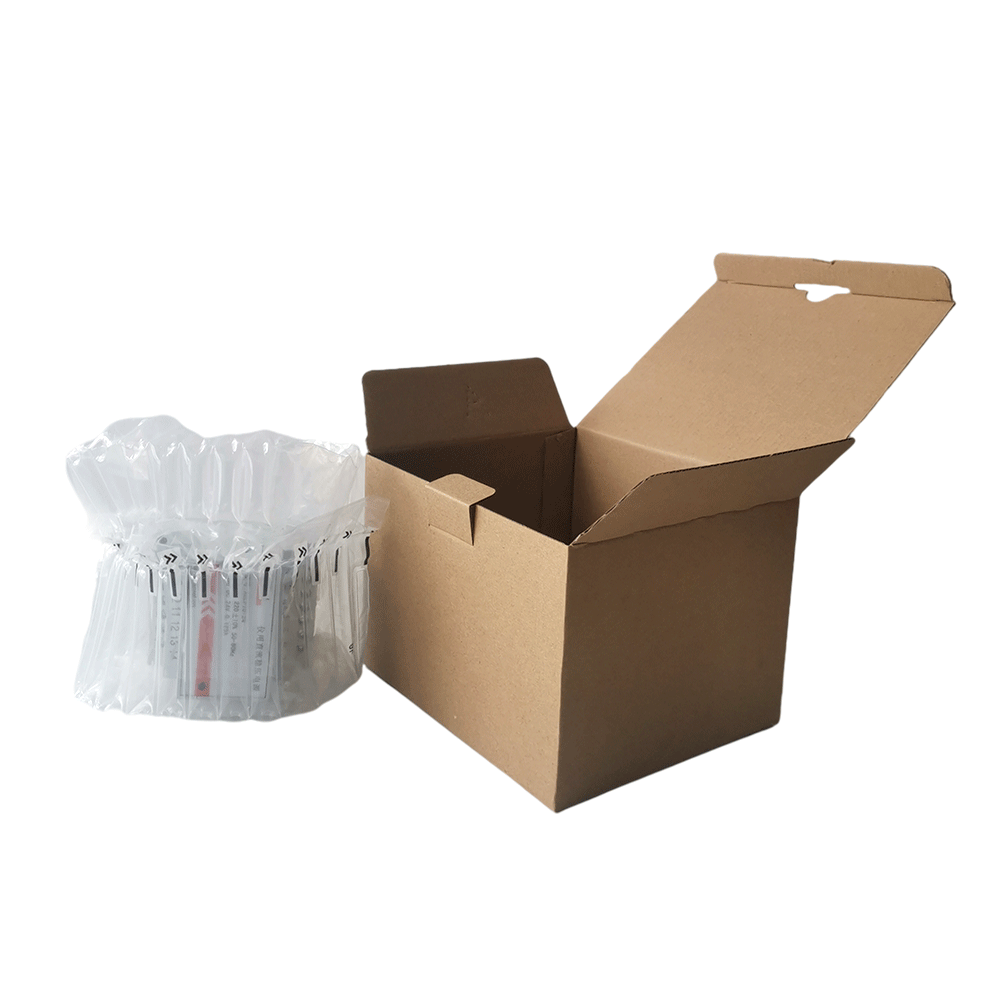

Package




MINIMUM PACKAGE







MINIMUM PACKAGE

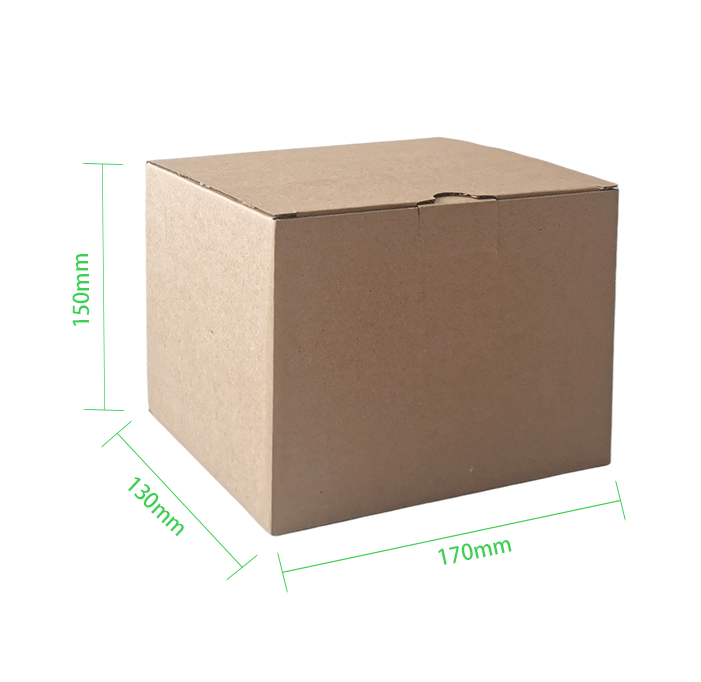

Package dimensions(1 PC)

130*150*170mm

Pakage Weight(1 PC)

0.114Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

535*525*475mm

Pakage Weight(36 PCS)

4.104kG


PRODUCT HS CODE


8543709990

ATTENTION !

The above packing and weight data are only refer to model AID10.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
