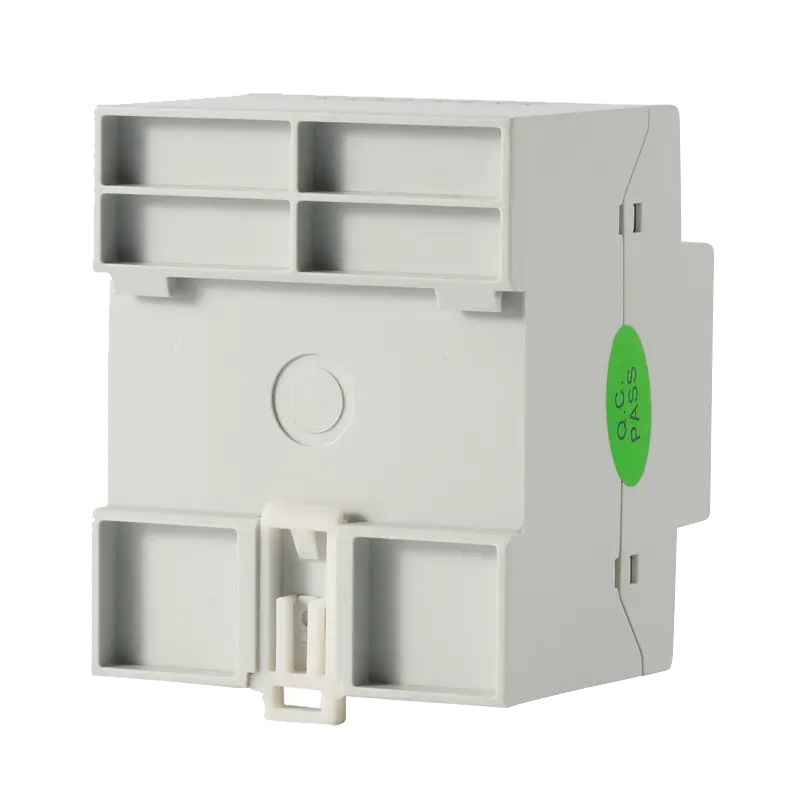

ADL100-EYZ Single Phase Prepaid Meter

ADL100-EYZ


● AC 220V

● 10(60)A

● Prepaid mode

● LCD display

● Historical records

● kWh Class 1

● DIN 35 mm



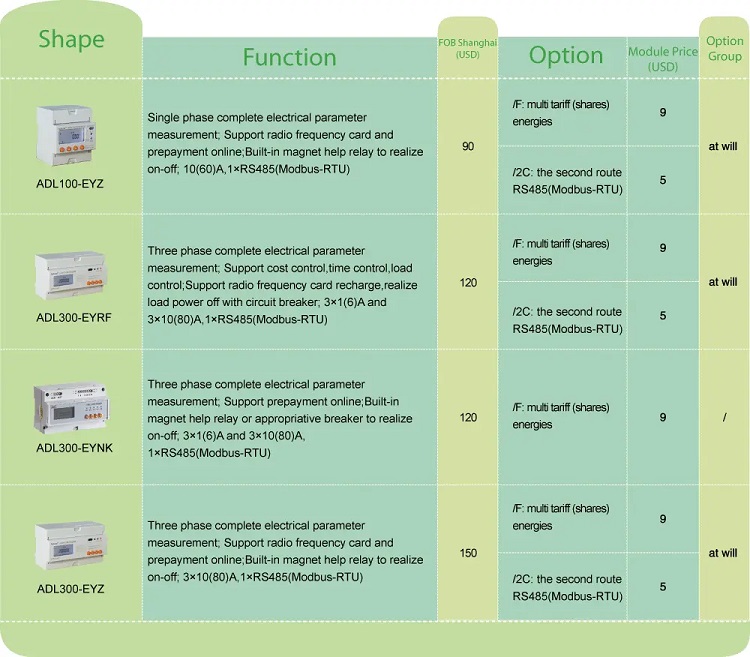

Description

General


ADL100-EYZ single phase pre-paid meters with intro-control are used for calculating the single active energy respectively on the frequency of 50/60 Hz. The built-in magnetic of meter can keep the relay on and off .It also supports RF card or remote recharge , load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.



Functions






Accuracy: kWh Class 1


Frequency

50/60HZ(Optional), Range: 45~65HZ


Auxiliary power supply(self supply):

220Vac(L-N), range:154~264V AC


Pulse output: Pulse output kWh


Consumption: <4VA(Each phase)






Installation: DIN 35mm


Dimension(L*W*H): 72*88*70mm


Active pulse:

Constant: 6400imp/kWh,400imp/kWh


Clock:M ≤0.5s/d


Starting current: 0.04A





Technical parameters

Technical parameters

ADL100-EY

ADL300-EY

Voltage

Nominal voltage

220V

3*220/380V

Nominal frequency

50/60Hz

Consumption

4VA(Each phase)

Current

Maximum current

60A

6A,80A

Starting current

Connect directly:0.04A,connect via CT:0.002A

Consumption

4VA(Maximum current)

Measurement
performance

Accuracy

Class 1

Class 0.5s

Clock

Accuracy

Error ≤0.5

Active pulse

Width

80ms±20ms

Constant

1600imp/kWh

6400imp/kWh

Communication

Interface

RS485

Protocol

MODBUS-RTU

Temperature range

Operating

-25℃ 55℃

Storage

-40℃ 70℃

Humidity

≤95%No condensation

Altitude

≤2000m

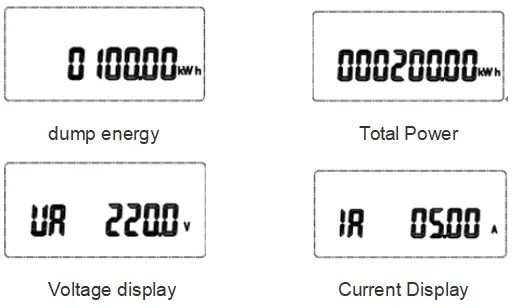

LCD Display






Operation Instruction

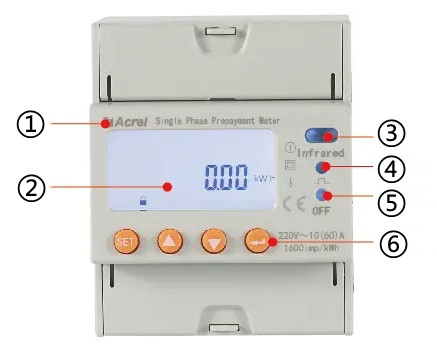

① Brand/Model

② Panel

③ Infrared Interface

④ Pulse Output light

⑤ Switch opening light

⑥ Button

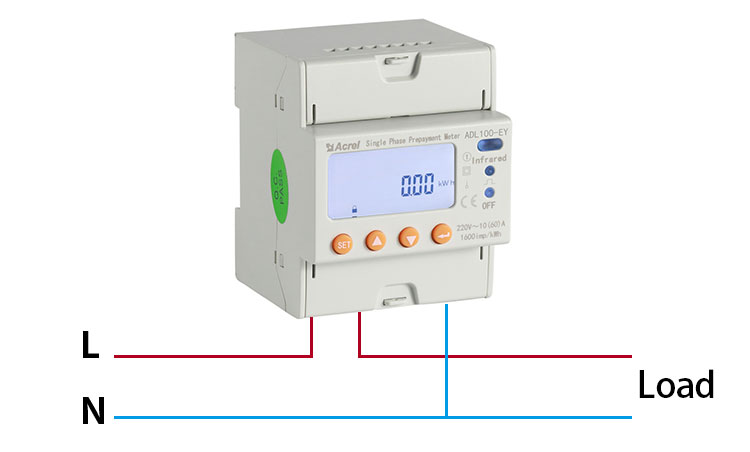

Wiring

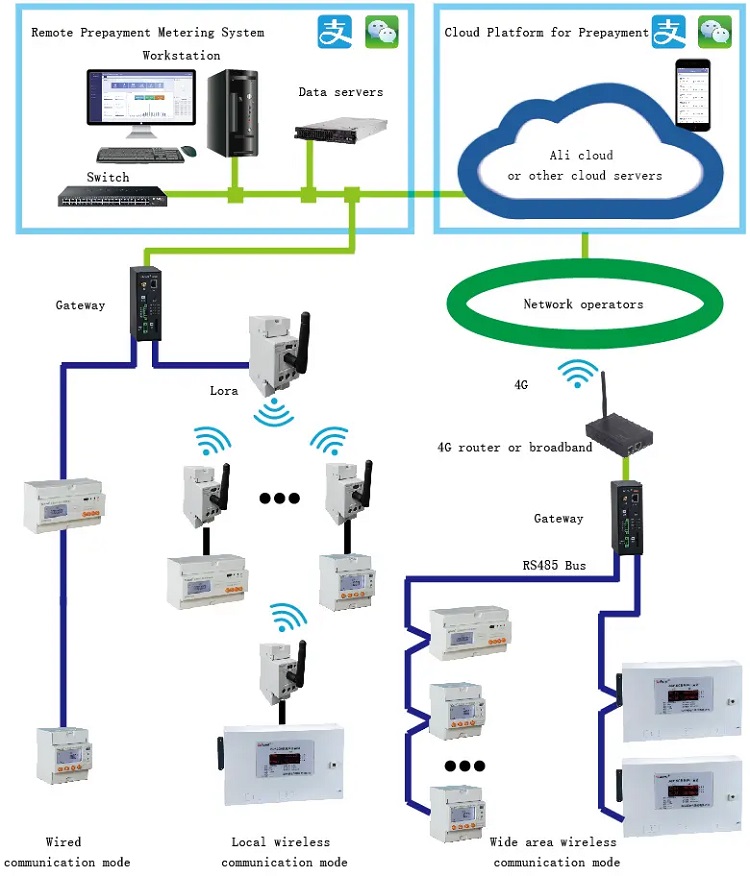

Network







FAQ

QDifference between prepayment meter and measuring meter.

AMeasuring meter focuses on diversified power data measurement, power parameter measurement and analysis, power quality measurement, etc; the prepayment table focuses on billing, alarm, control tripping, etc.

QWhy is this generation divided into card and internal control meter?

AThe internal control meter supports remote recharge, reduces manpower, maintenance cost and improves user experience.

QThe reason to use wireless prepayment.

AMarket development needs. Point dispersion,It is difficult to arrange the middle layer equipment or the layout cost is very high.



Package




MINIMUM PACKAGE







MINIMUM PACKAGE

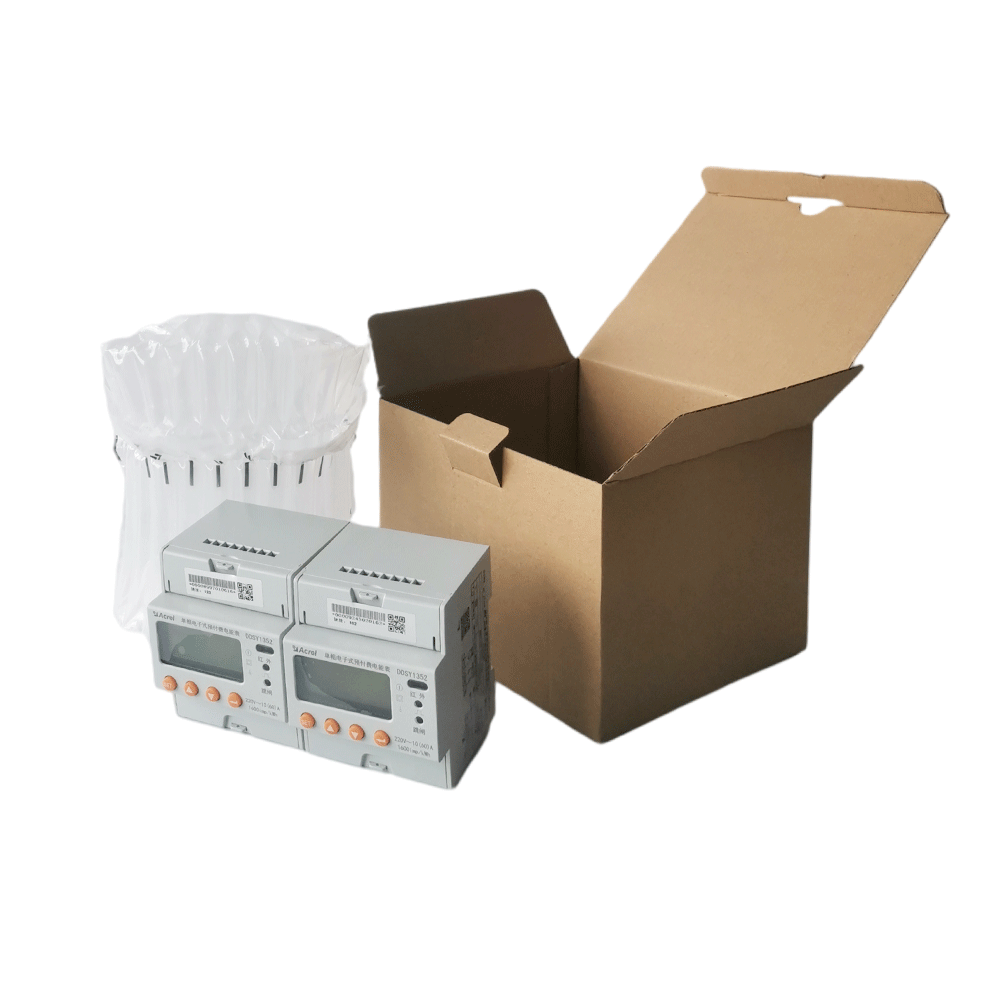

Package dimensions(2 PC)

170*150*130mm

Net Weight(0.257KG/PC*2)

0.514KG

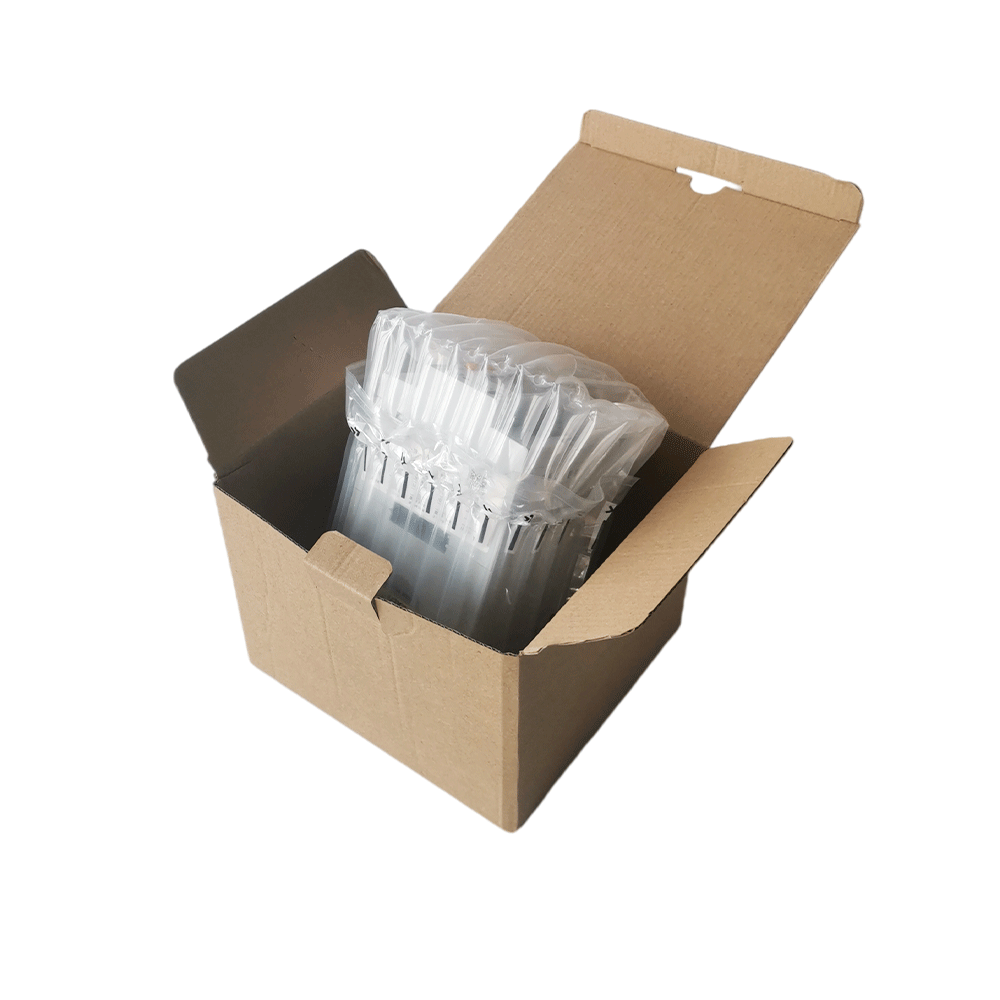

WHOLE BOX PACKAGE


Package dimensions(36 PCS)

540*480*280mm

Package Weight(36 PCS)

10.712KG


PRODUCT HS CODE


8543709990

ATTENTION !

The above packing and weight data are only refer to model ADL100-EYZ.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
