1--Distributed Photovoltaic Solutions
Nowadays, grid companies usually require photovoltaic grid-connected systems to be irreversible, that is, the electricity generated by photovoltaic grid-connected systems is consumed by local loads, and excess electricity is not allowed to supply to the grid. The system can regulate power generation in order to prevent the photovoltaic grid-connected system from generating reverse power.

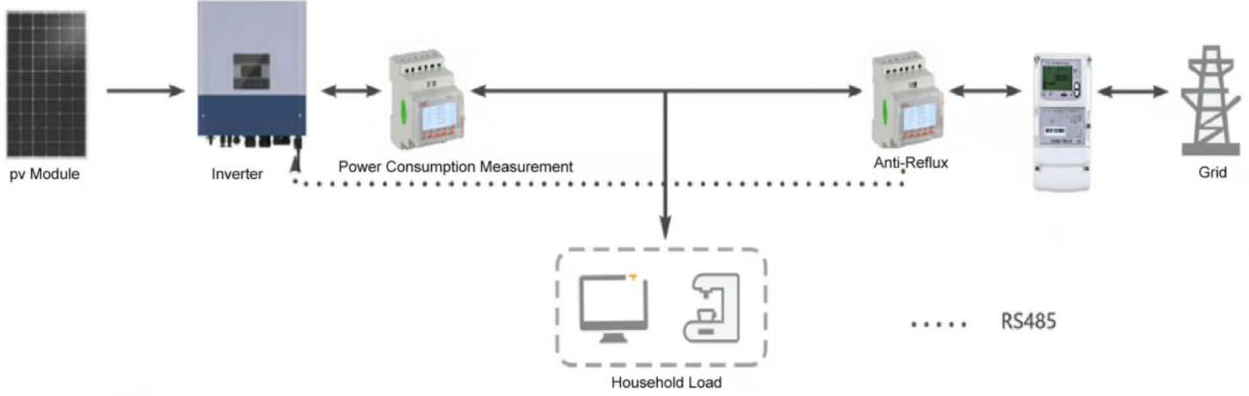

1. Solution for PV anti-backflow

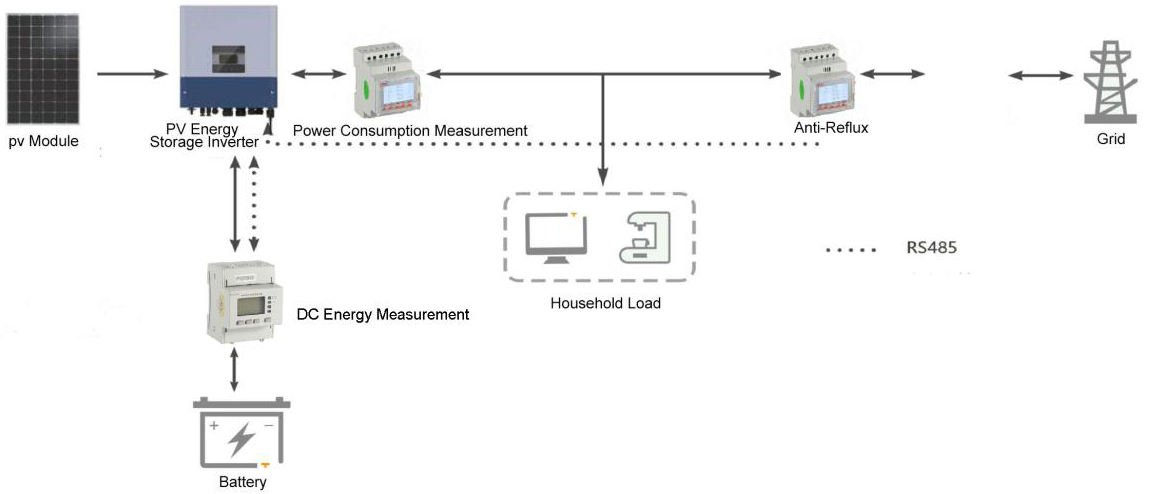

2. Solution for PV DC coupled energy storage

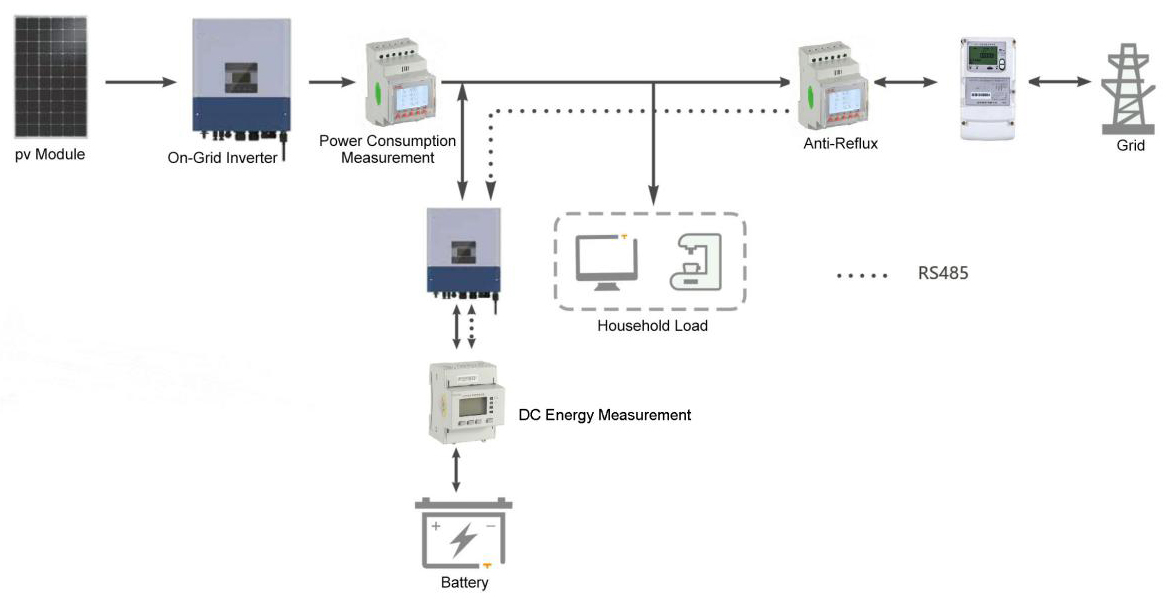

3. Solution for photovoltaic AC coupled energy storage

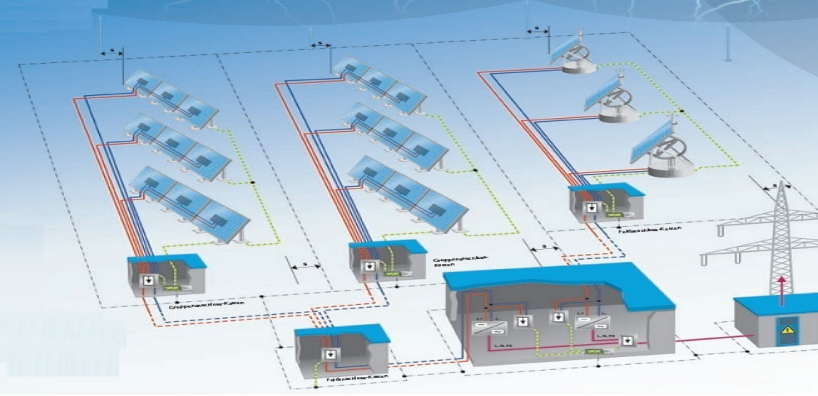

2--Centralized PV Solutions

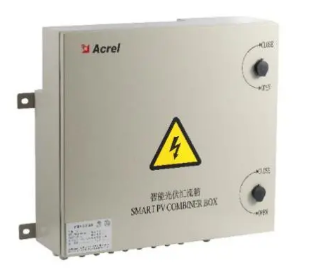

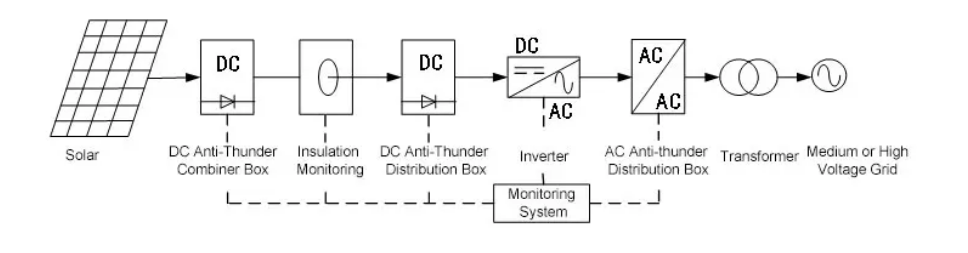

In the solar PV power generation system, the smart PV combiner box reduces the connection between the solar PV cell array and the inverter. The box can monitor the operating status of the solar panels, lightning protector and DC circuit breaker. With RS485 interface, the device can upload the measured and collected data and equipment status.
|Product Name||Product Image||Functions|
|Distributed Photovoltaic Solutions|

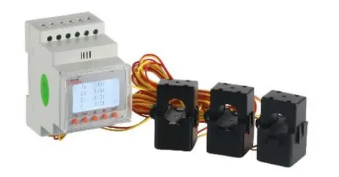

|ACR10R-D16TE Solar Inverter Energy Meter|

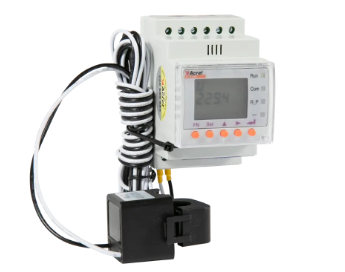

|AGF-AE-D Single Phase AC Energy Meter|
|ACR10R-D10TE4 Solar Inverter Energy Meter|
|DJSF1352-RN rail-mounted DC power meter|
●RS485 communication interface
●Supports Modbus-RTU protocol
●Relay alarm output and digital input function
●Set the ratio, alarm, and communication through the meter panel keys according to different requirements
●Event recording of switch (Modbus protocol), programming and event setting records, instantaneous and timing freeze function of data, maximum and minimum value recording function of voltage and current power
|Centralized PV Solutions|

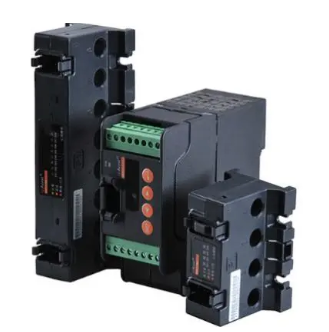

|PV Confluence Acquisition Device|
● Communication:RS 485 Modbus RTU
● Maximum 24 circuits

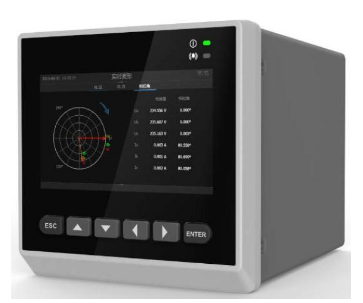

|APQM-E Advanced Power Device||● Measurement of electrical parameters, harmonics, inter-harmonics, voltage fluctuation, flicker;|
● Monitoring of voltage swell, voltage sag, voltage interruption, Statistics of power quality limit times, voltage qualification rate, and form the report.
