Medical Isolation Power Supply System


Medical IT system insulation monitoring device and fault location system is suitable for hospital operating room, ICU (CCU) and other important places, and can provide a safe place for such continuous, reliable power solutions.


Main Functions

1)Primary connection diagram and field distribution display

2)Real-time data acquisition and display

3)Fault Alarm

4)Remote parameter setting and inquiry

5)Graphic display

Display the insulation status, load status, and the isolation transformer temperature of each set of isolated power systems in graph form.

Product Selection

Product Name
Product Image

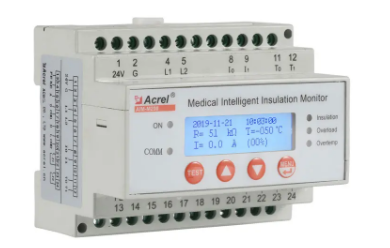

AIM-M200 Medical Intelligent Insulation Monitor

● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
●  Insulation fault location

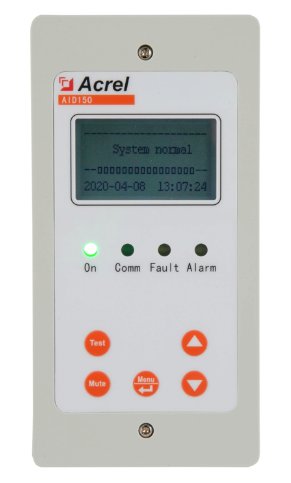

AID150 Alarm and Display Device
● Remote monitoring
● LED indicators:On, Insulation, Overload, Overtemp
● Mute button
● Test button
● Auxiliary power supply: DC24V
ASG150 Signal Generator

● Generating Fault Location Signal
● Detection of L1 and L2 disconnection
● LED indicators: On, Comm, Test
● CAN bus
● Auxiliary power supply: DC24V

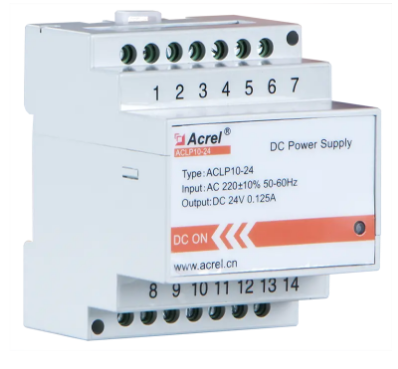

ACLP10-24 Auxiliary Power Supply

●  Auxiliary power supply to AID series
●  AC 220V input, DC 24V output
●  Completely Isolated Linear Transformer
●  Power-on indicator

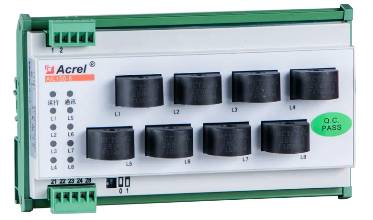

AIL150-4/-8 Insulation Fault Locator

● Insulation fault location in AC IT systems
● AIL150-4: 4 measuring channels
● AIL150-8: 8 measuring channels
● LED indicators: On, Comm
● CAN bus
● Auxiliary power supply: DC24V

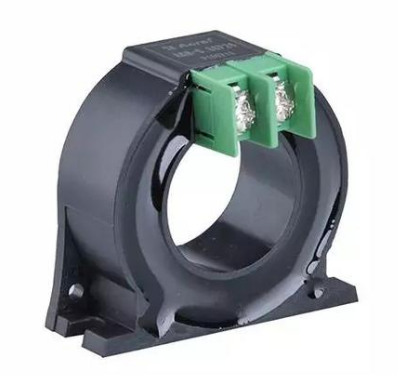

AKH-0.66P26 Protective Current Sensor

● Matching with AIM-M Series Insulation Monitor

● Maximum Current: 50A

● Transformation ratio: 2000:1

AITR Series Medical isolation transformer

● Isolating transformers for medical IT systems

● Double insulation treatment, Electrostatic shielding layer
● PT100 temperature sensor
● Rated power: 3.15…10KVA
● CE
