ATE Wireless Temperature Sensor

ATE

● Wireless transmit,470MHz;
● Wireless transmission distance, 150 meters in open area;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -50℃~+125℃.


Description

Appearance

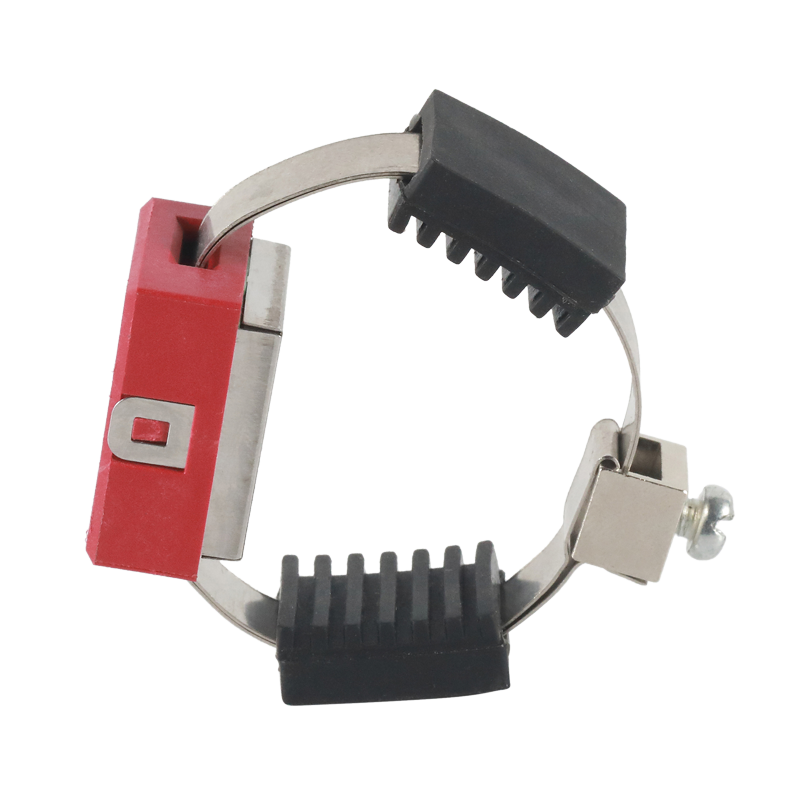

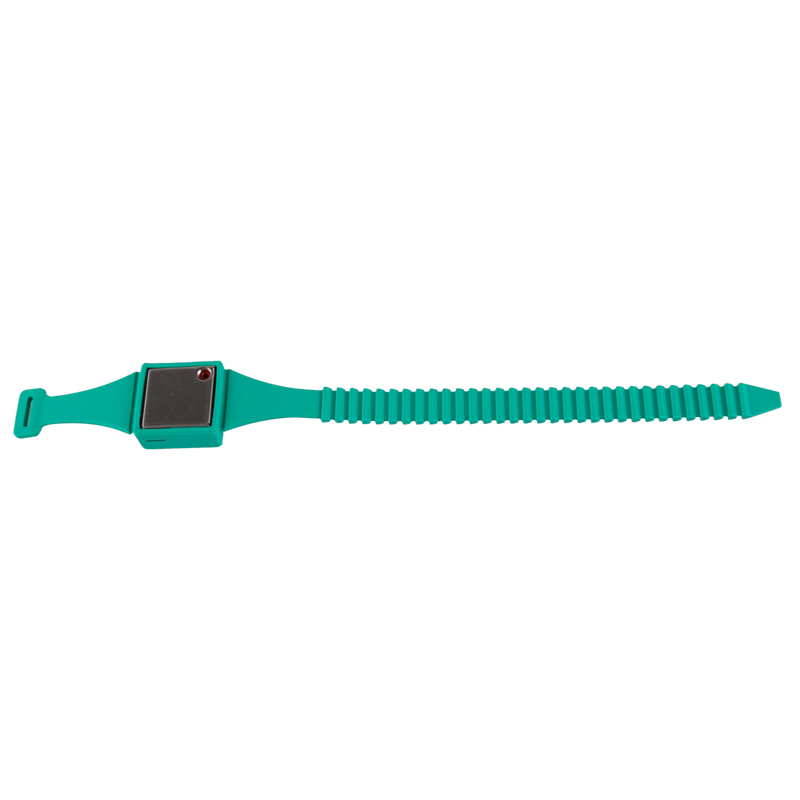

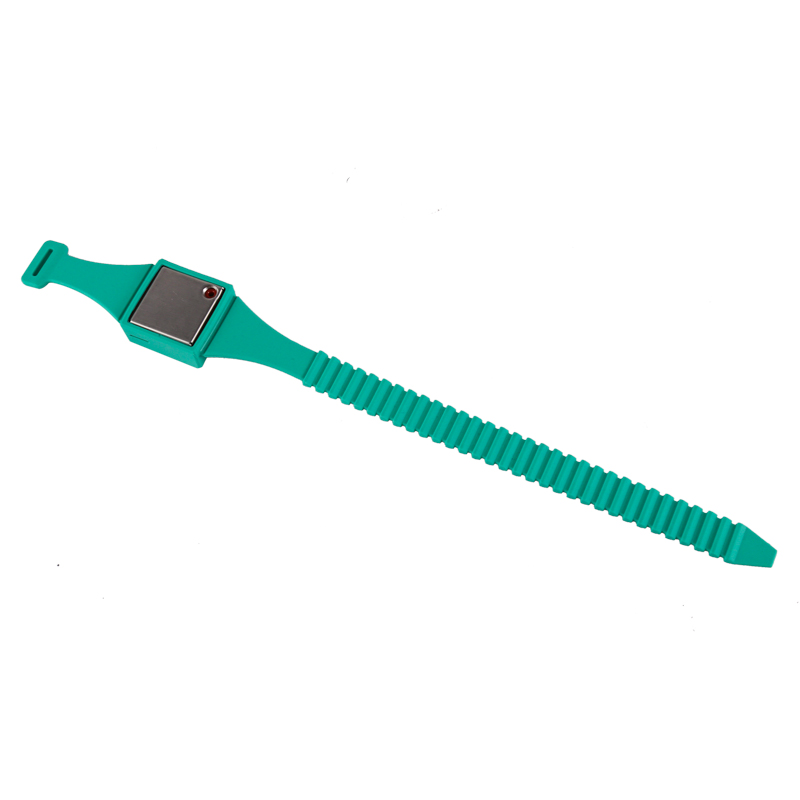

ATE100ATE100MATE200P



ATE100PATE200PATE400

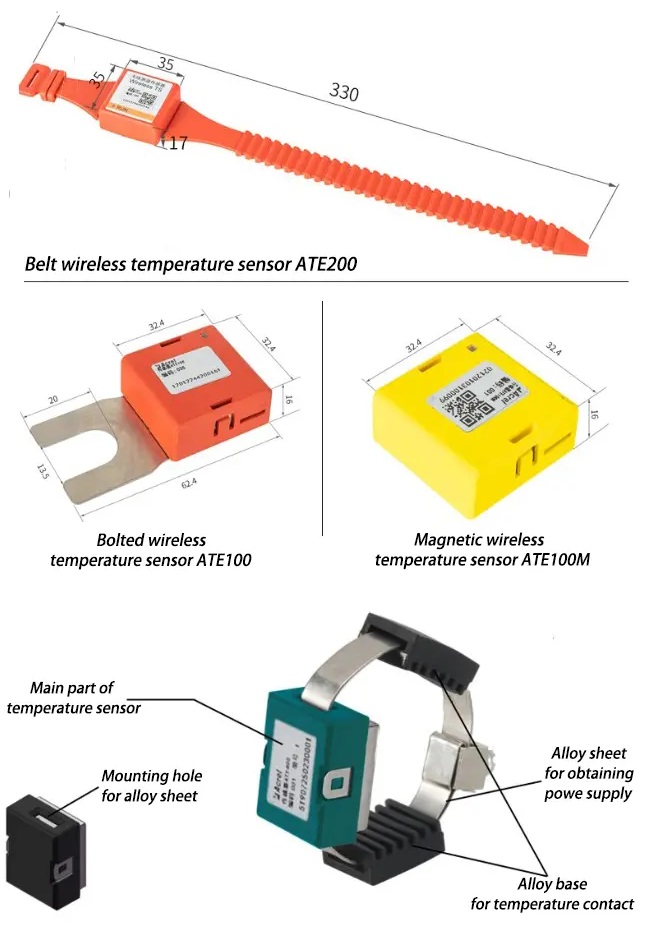

Dimension

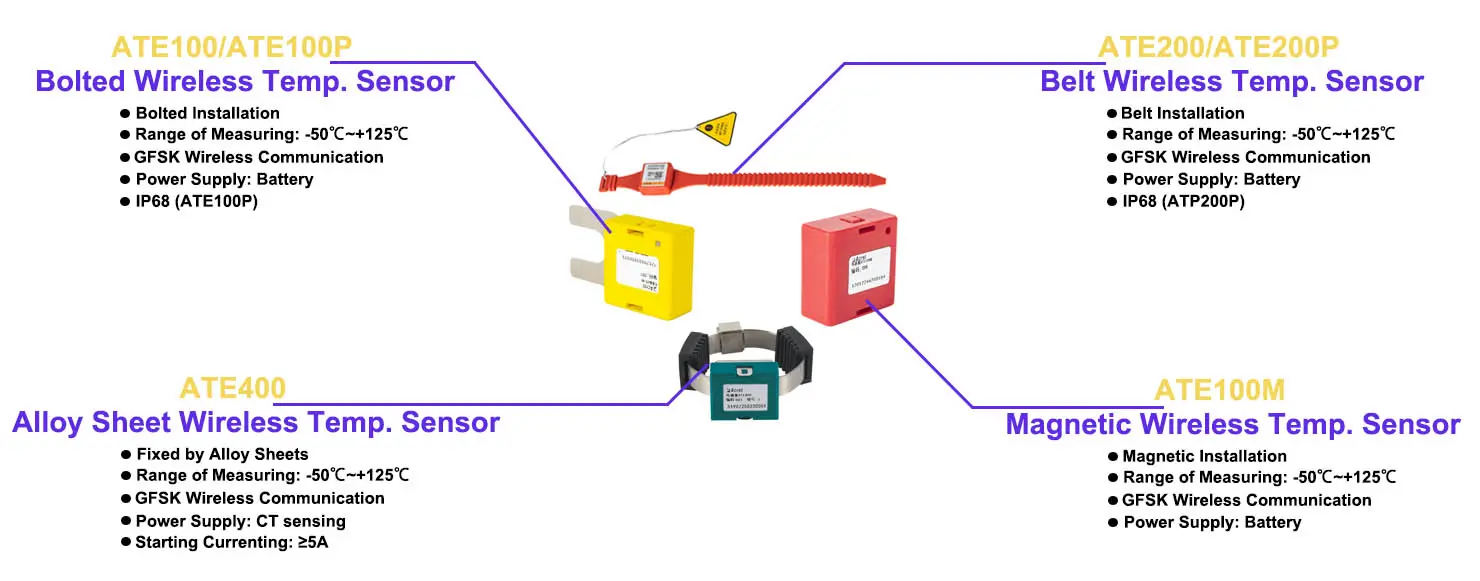

Features



Installation







Typical Connection



FAQ



Q: Battery sensors don't display temperature.


A: Possible Reasons:

A.The sensor's power switch is not turned on;

B.The sensor and transceiver are not matched;

C.Turn on the sensor first, and then power on the transceiver, wait about 15MIN. The distance between the sensor and the transceiver is far.



Q: Passive sensors don't display temperature.


A: Possible Reasons:

A.Installing layers of sensor's alloy plates are not enough, at least 3 layers;

B.The sensor and transceiver are not matched;

C.The starting current when the sensor is installed is less than 5A;

D.The distance between the sensor and the transceiver is far.




Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(3 PC)

170*150*130mm

Package Weight(3 PC)

0.47Kg


WHOLE BOX PACKAGE


Package dimensions(108 PCS)

450*240*250mm

Package Weight(108 PCS)

19.92kG


PRODUCT HS CODE


9025191010

ATTENTION !

The above packing and weight data are only refer to model ATE100.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
