AGF-M Solar DC String Monitoring Device

AGF-M



● Max isolation measuring dc 20A

● Max voltage measuring for busbar DC1.5KV

● LED display

● RS485 modus RTU

● DIN 35 mm


Description

General


AGF-M Perforation type PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the datas to master device.

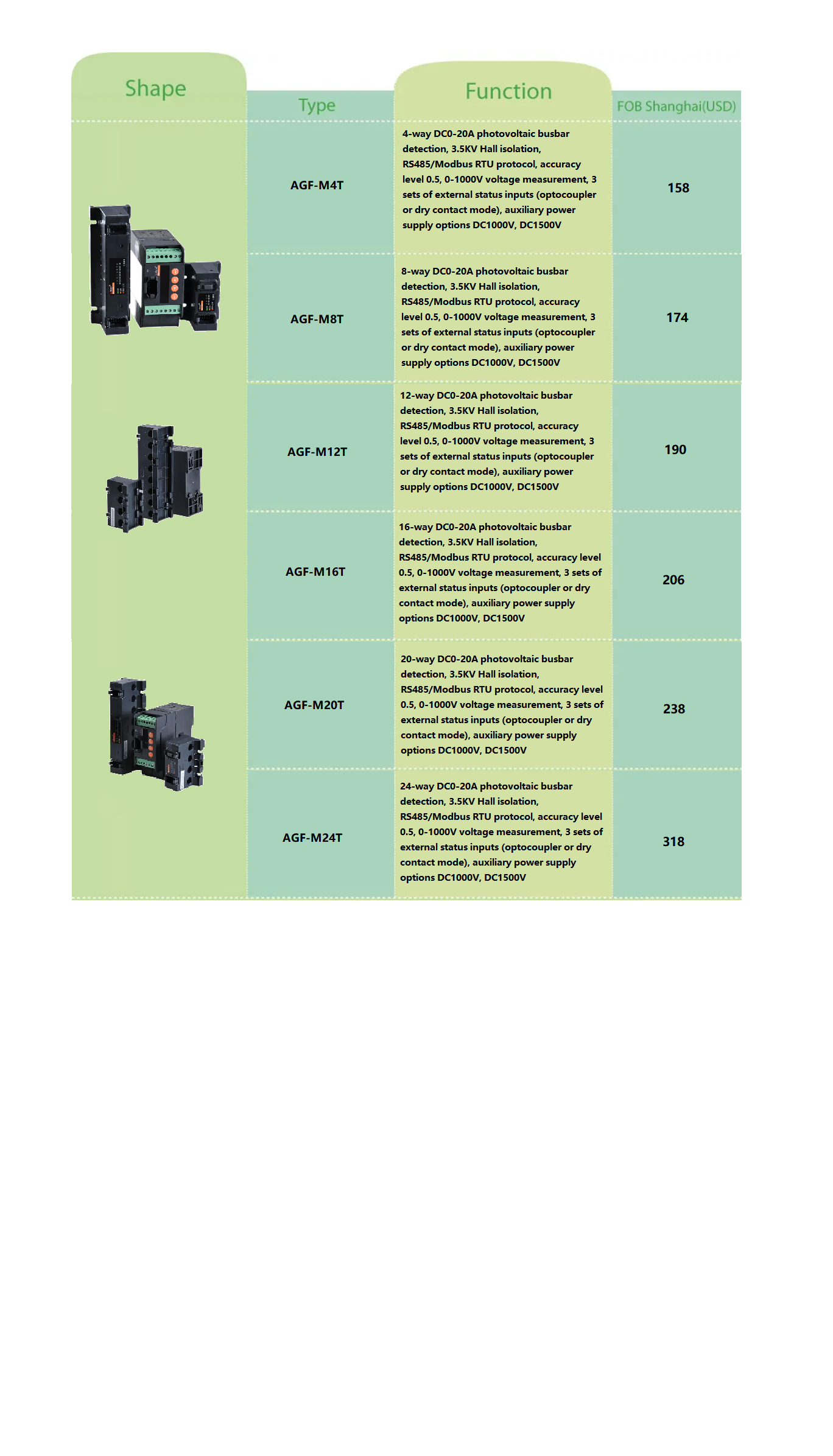

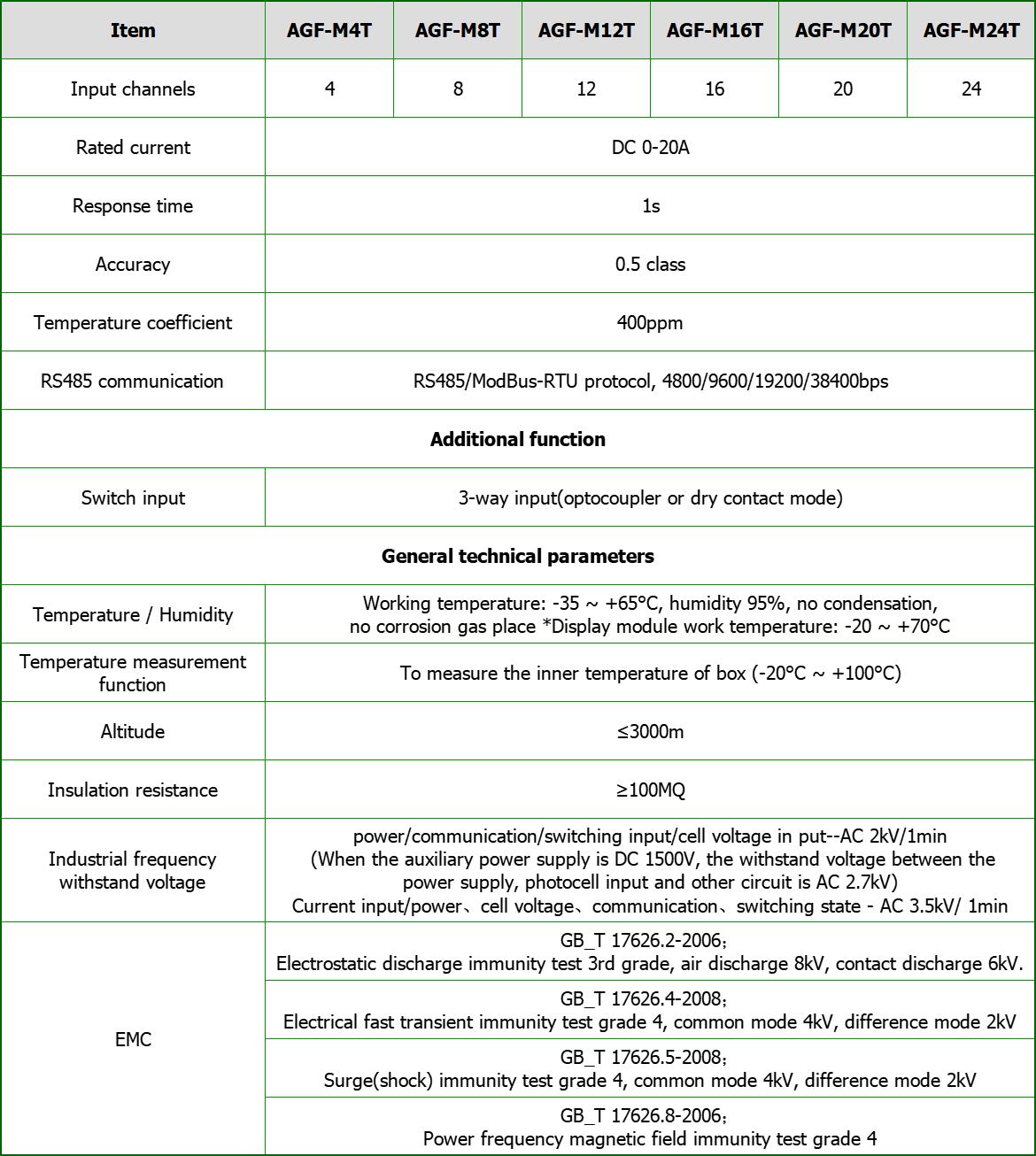

Product Data




Dimension

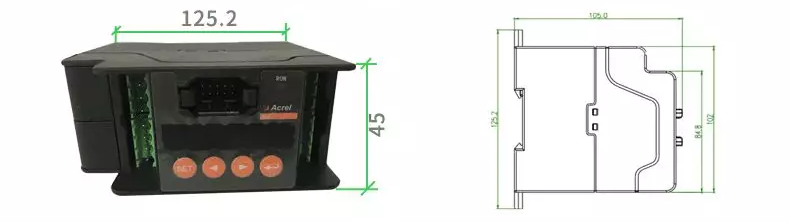

Power supply module size

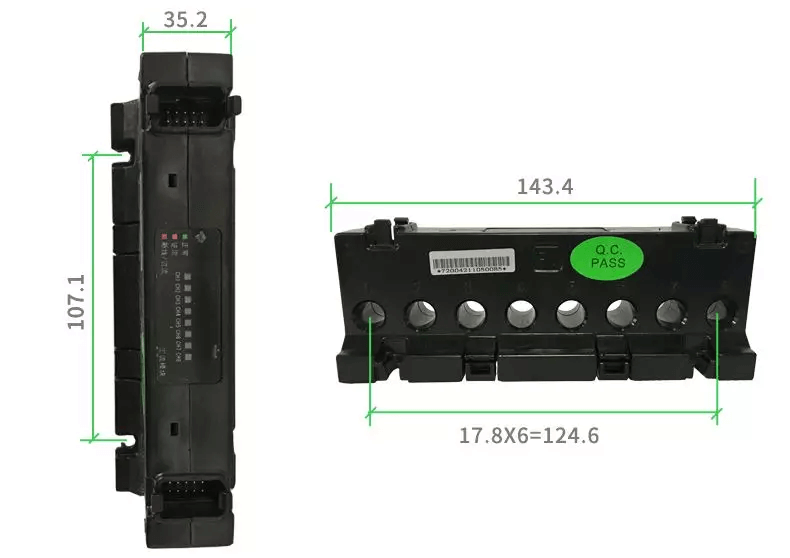

confluence acquisition module installation dimension

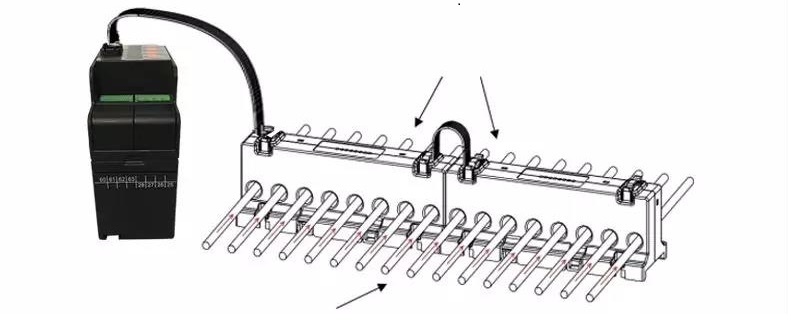

Installation




Structure
