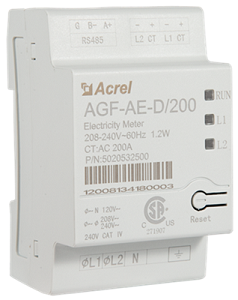

AGF-AE-D Solar Inverter Energy Meter

AGF-AE-D

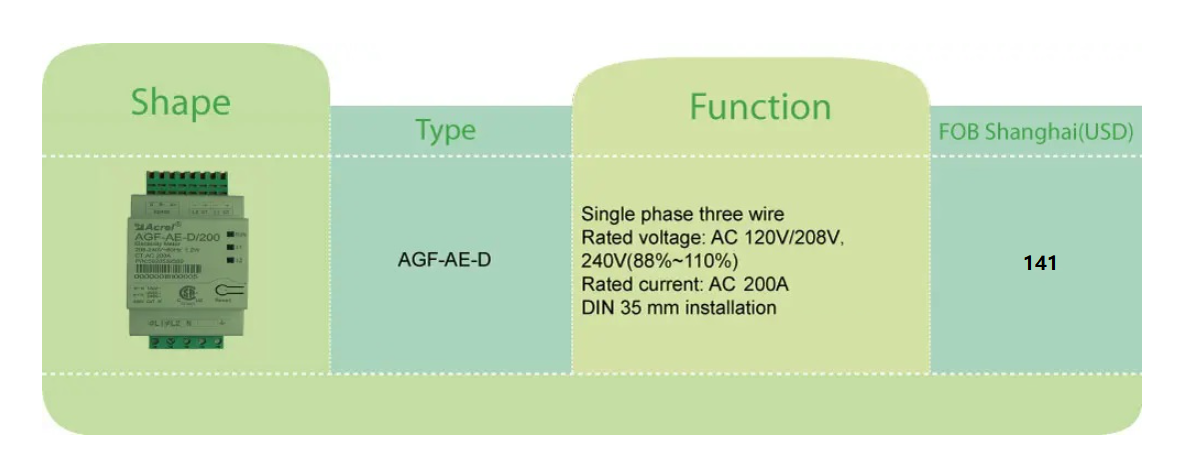

●Single phase three wire

●Rated voltage: AC 120V/208V,240V(88%~110%)

●Rated current: AC 100A , 200A

●Application: inverters in Australia, Europe, North America and other areas

●DIN 35 mm


Description

General


In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade meter (RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.

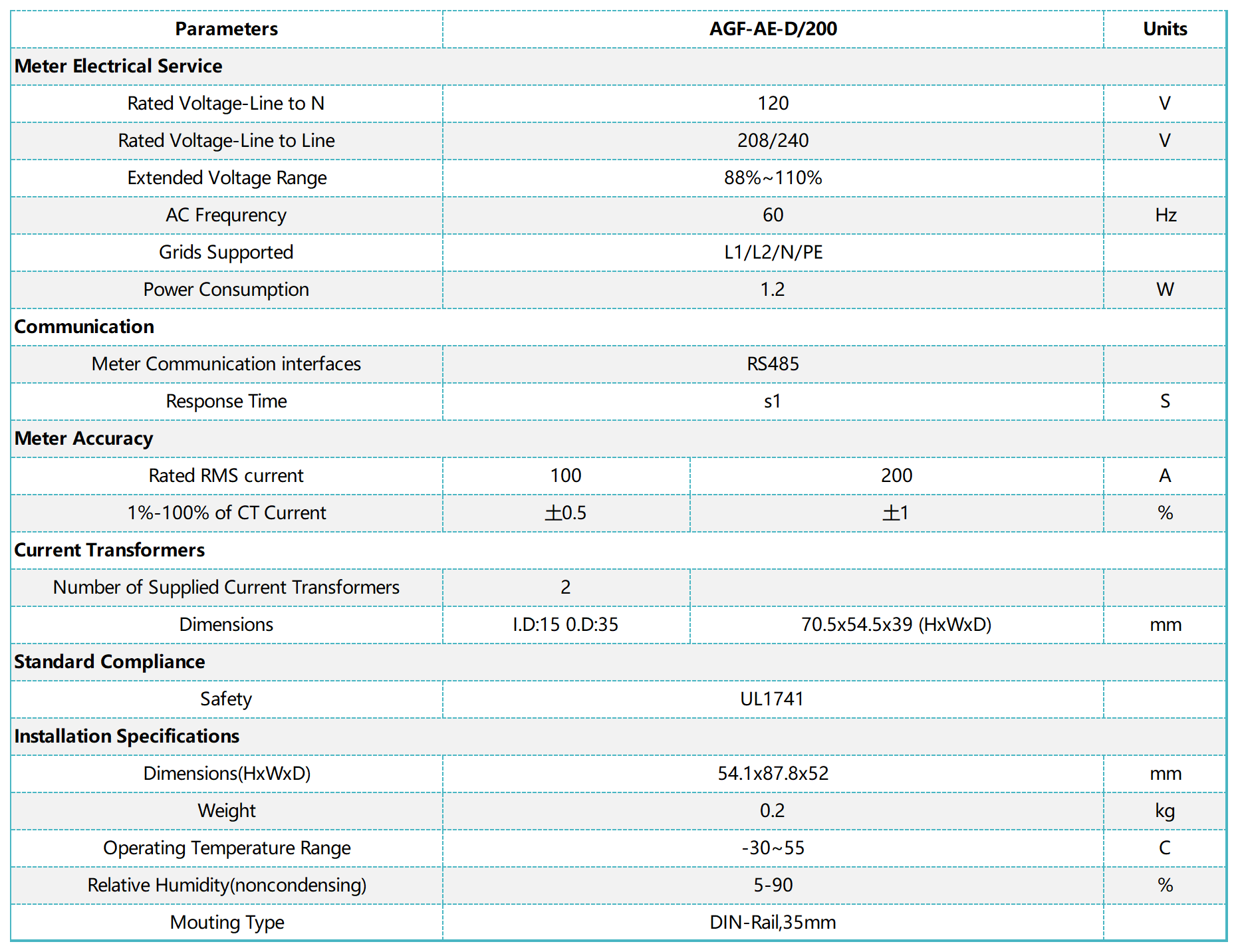

Product Data




Function




Current

AGF-AE-D/100100A AGF-AE-D/200200A

Frequency

60Hz

Power Supply(self supply)

AC85265V or DC100350Vpower consumption 10VA

Input consumption

less than 0.2VA





Installation

DIN rail 35mm


Dimension(L*W*H)

85×54×64mm

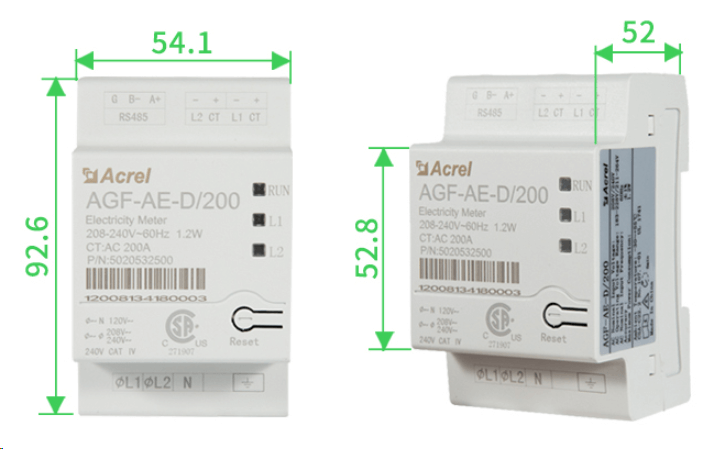

Dimension

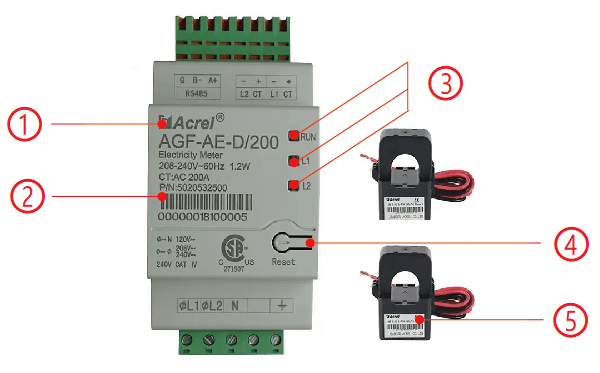

Wiring






① Brand / Model


② Panel


③ Indictor Lights


④ Reset Button


⑤ Current Transformer



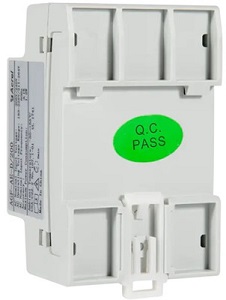

Installation

Push away the buckle on the back of the instrumentInstall the instrument on the din rail Push the buckle up fixed



Connection
