Power IoT Cloud Platform

Power IoT Cloud Platform


● Substation,Building

● Telecommunication base station

● Industrial energy consumption

● PC and APP Platform

● Self-adaption

● API support

● Free trial


Description

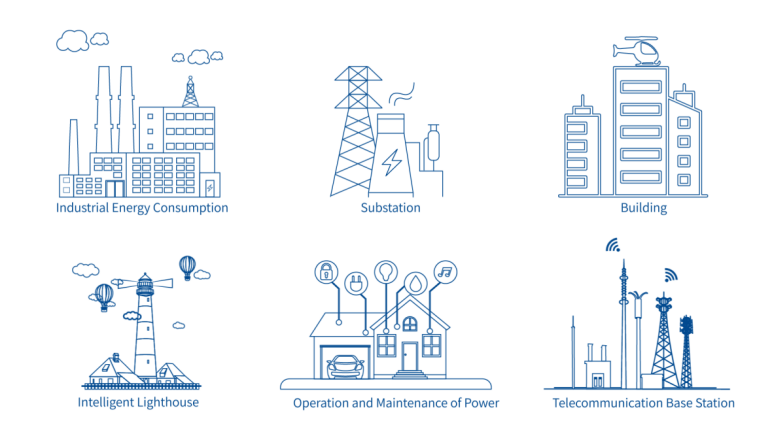

Application





Internet of Things(IoT) technique can be widely used in industrial field such as energy  management, wireless temperature sensors’ network and etc. In this case, Acrel IoT energy management system can provided both a cloud platform on website and a APP for mobile phone for our user’s to remotely monitor the energy and devices’ status in real-time while processing fault alarm in time just simply through their phones or PC without the need of heading to work-site places. Also, an one-click energy report generation function is possessed for a brief overview of recent energy consumption.

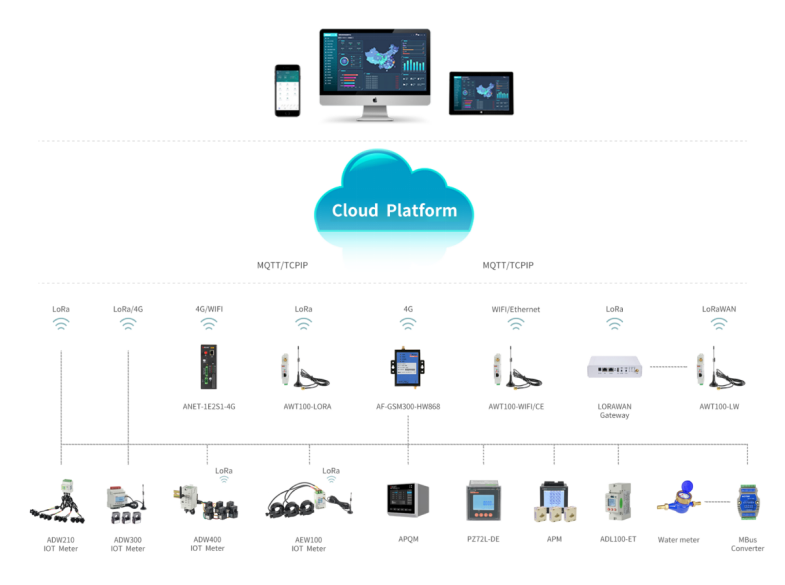

Structure

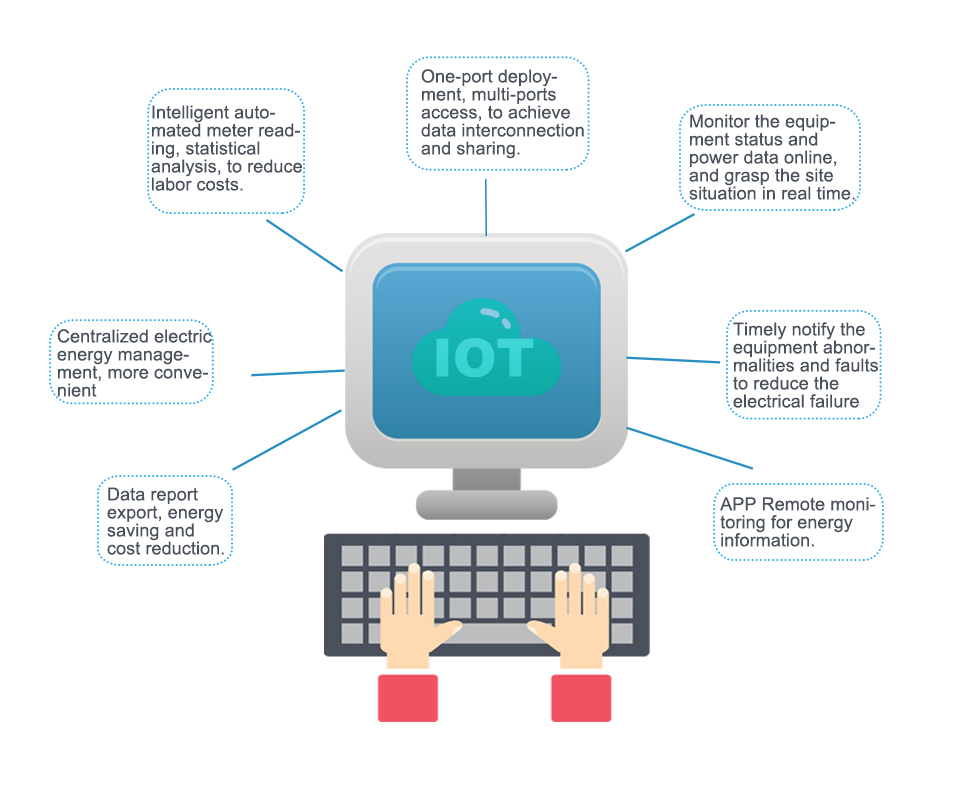

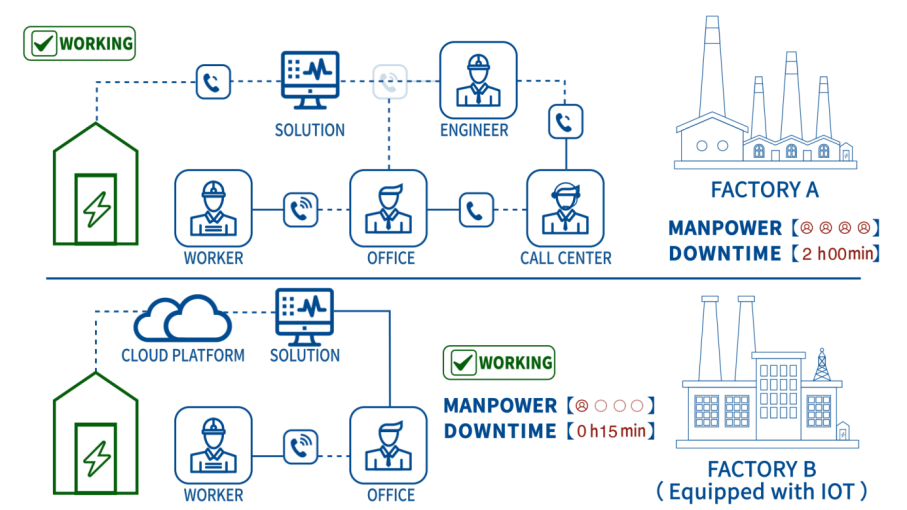

System Value




Advantage





1. Centralized monitoring: Remote devices upload data 24 hours a day.

2. Self-registration: Users can register their own accounts and add devices through the mobile app.

3. Energy Analysis: Get the energy consumption of the devices anytime, anywhere.

4. Alarm: Once an alarm occurs on the device, the alarm data will be uploaded in real time and pushed by the app to relevant person.






Main Functions




1) HOME

It can provide device status, event list, device alarm information and energy statistics.

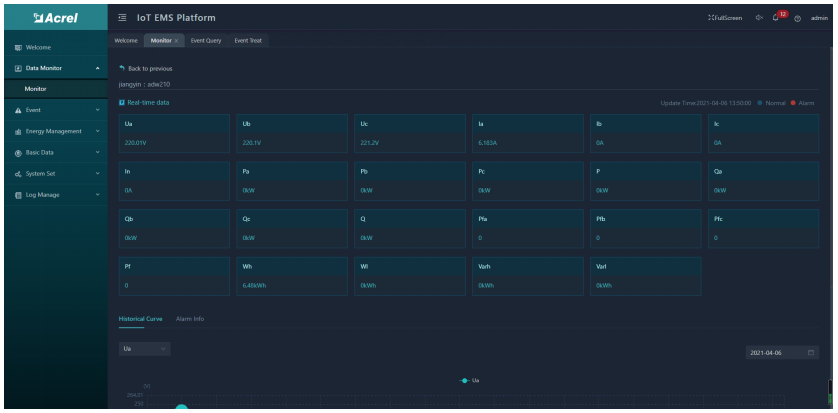

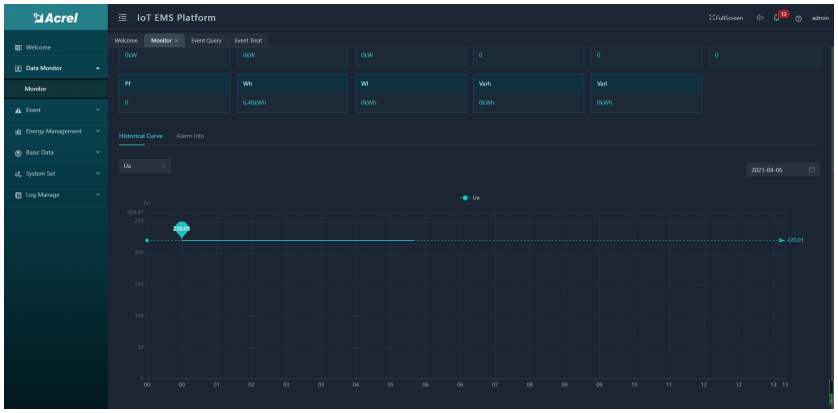

2) Data Monitor

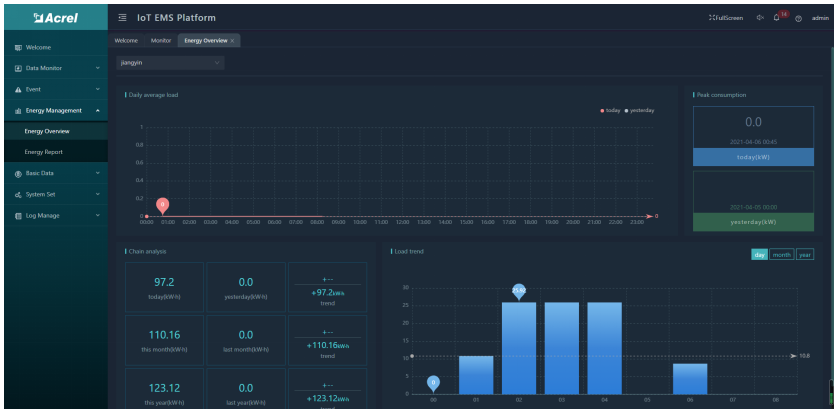

3) Energy Management

●Energy management includes energy overview and energy report.

●Energy overview can view the electricity consumption of today, this month, and this year, and can display the corresponding same-month-on-month information, and you can also view the peak electricity consumption of today and yesterday.

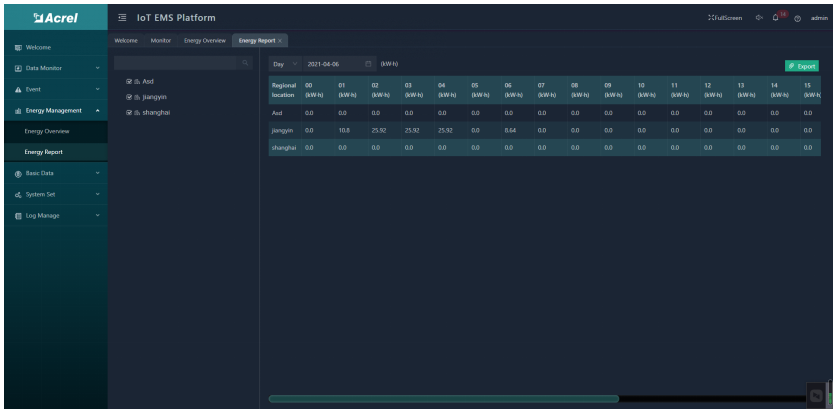

●Users and administrators can view the energy report of one or more devices.The dimensions of the report are day, week, month,quarter and year. And you can export the energy report.

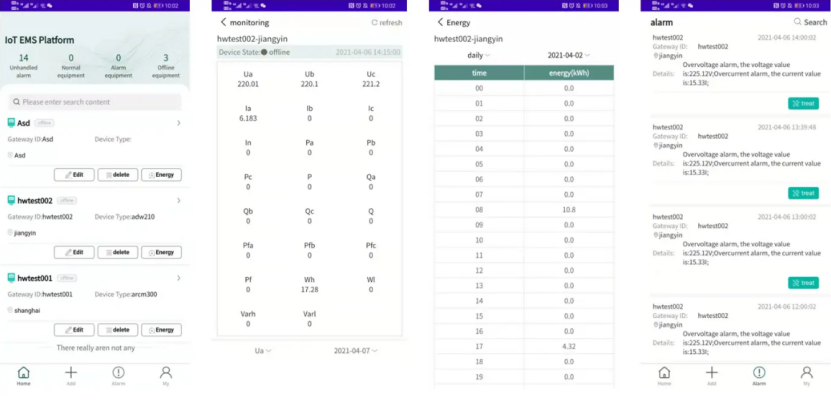

4)APP

Scan the QR code of the gateway or module, connect the platform, and you can query the real-time data of the module without any other operations.

5)Demo Account

http://iot.acrel-eem.com/

Users Name: Acrel

contact us to get the password



Step 1: Install and Power on IoT Deivces

For different combination of our IoT devices, the wiring and installation might be different. Please contact us for technical support so that you can correctly install all the devices.

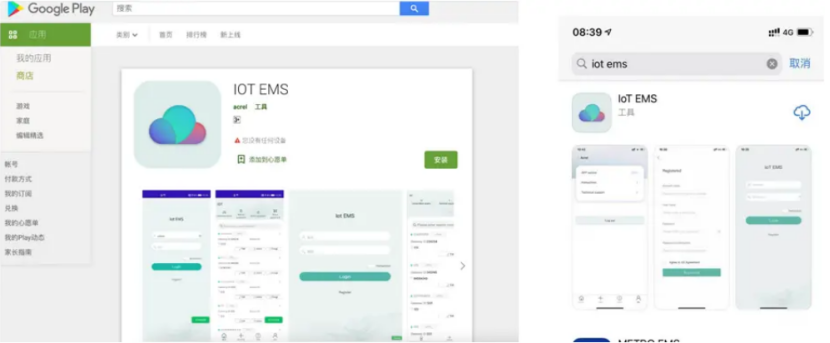

Step 2: Download IoT EMS APP and Register

Download the latest version of IoT EMS APP and register your own account. You can also try out the APP function by using our test account. ( Account: Acrel  Password: 123456)

Step 3: Scan the QR Code to Add IoT Devices

IoT devices of our company will be attached with QR code for adding the devices into your account. Extremely simplify the operation steps. (Devices can also be manually added)

Step 4: Start your 3-month Free Trail

Now, it’s time for your own free trial of IoT Smart Metering System. As long as the system and IoT devices are of our company, we will aid you with full technical support.


IoT Smart Metering System

Overall Introduction of IoT smart metering system, basic structure, function, advantage of IoT smart metering system comparing to traditional meter reading methods, how to get start. Everything you need to build your own IoT smarter meters system.

IoT Mobile APP

IoT Mobile APP is the APP mainly designed for mobile phone users based on the IoT Smart Metering System. All function of IoT Smart Metering System can be realized in this APP like checking power consumption data, exporting energy report and etc.

Smart Energy Meters

Smart energy meters with either standard RS485 (MODBUS-RTU) protocol to be paired with IoT gateways for IoT communication network or built-in wireless communication like 4G, WiFi, LoRa and etc for setting up IoT communication network without the aim of IoT gateways.

IoT Gateways

IoT gateways with upstream of 4G, WiFi, LoRa, LoRaWAN, Ethernet and downstream of RS485(MODBUS-RTU), LoRa to be paired with smart energy meters with RS485 or LoRa communication for setting up the IoT communication network.



Product NameProduct imageFunction


ADW210 IOT Meter






Measurement: 4 circuits 3 phase voltage, current, power, power factor, etc.
Max demand
Communication: RS485 or LoRa

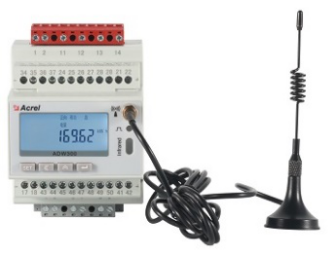

ADW300 Wirless Meter


Measurement: 3 Phase voltage, current, power, power factor, etc.
Accuracy: 1
Max demand
Communication: RS485, LoRa, 4G, NB or 2G



ADL200 IOT Meter
● Accuracy: kWh: Class 0.5s
● Frequency: 45~65 Hz
● 12 digits LCD display U, I, P, Q, PF, kWh
● Range of measuring: 000000.00~99999999 kWh
● Communication: RS485, Modbus-RTU
ADL400 IOT Meter
● Accuracy: kWh: Class 0.5s
● Frequency: 45~65 Hz
● 12 digits LCD display U, I, P, Q, PF, kWh
● Range of measuring: 000000.00~99999999 kWh
● Communication: RS485, Modbus-RTU
AGF Monitoring Device

● With3-way switch status monitoring, collect the output empty contact status of DC circuit breakers, lightning protection devices, etc.

● Range of voltage measuring: DC 0~1500V

● Communication: RS485, Modbus-RTU

ATC600 Wireless Transceiver


● Temperature Data Transmission: 240
● Communication: RS485
●Type: C: Terminal mode; Z: Relay mode


DJSF1352 DC Power Meter
● Accuracy: kWh: Class 1S or 0.5s, with ±12V voltage output for hall sensor power supply
● Measurement: voltage, current, power, forward and reverse electric energy, two-way metering
● Communication: RS485

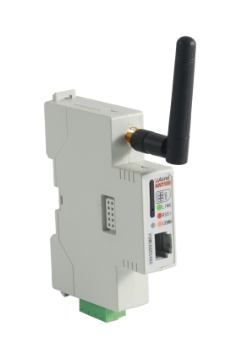

AWT100-4GHW Gateway

/ lorawan868/ lorawan923/ lora868

● Downlink: RS485

Uplink: 4G,WiFi or Ethernet/ lorawan868/ lorawan923/ lora868
