AKH-0.66/L Leakage Current Transformer

AKH-0.66/L Residual Current Transformer

AKH-0.66/L170*30

● Model: AKH-0.66/L-45 Leakage CT
● Accuracy: Class 1
● Ratio: 5A/5mA
● Aperture: 46mm
● Rated current: 16~100A
● Suitable for electricity renovation project

General

AKH-0.66L leakage current transformer is used for the collection of residual current, and can be used with electrical fire monitoring devices, motor protection devices and residual current relays.

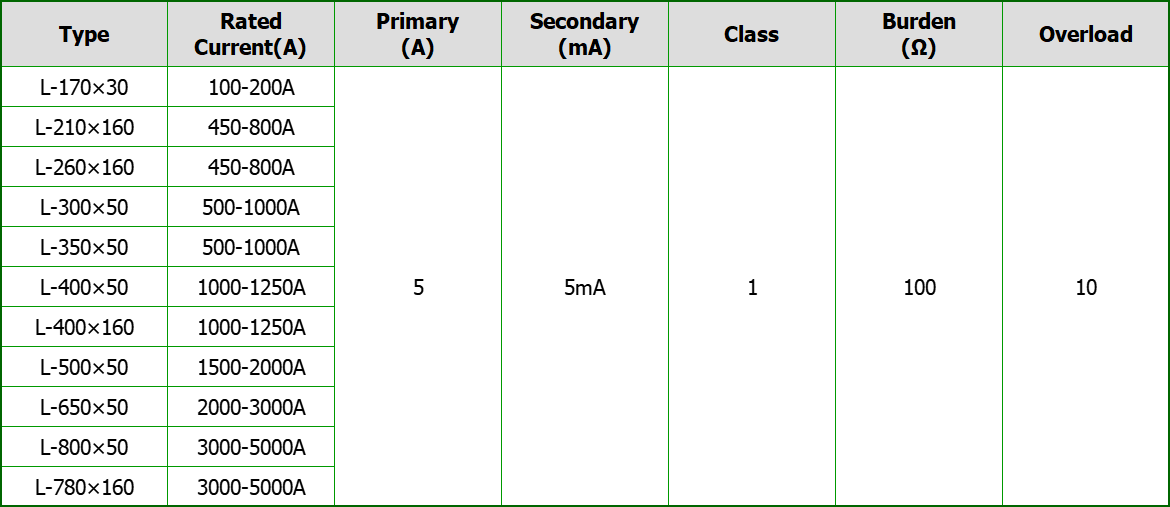

Technical Parameters

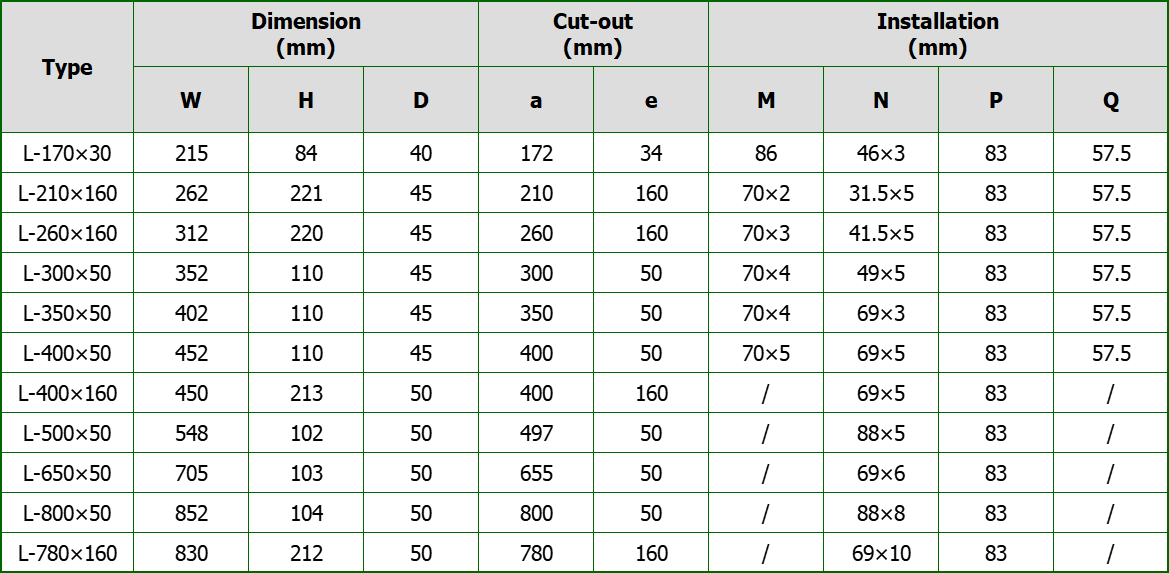

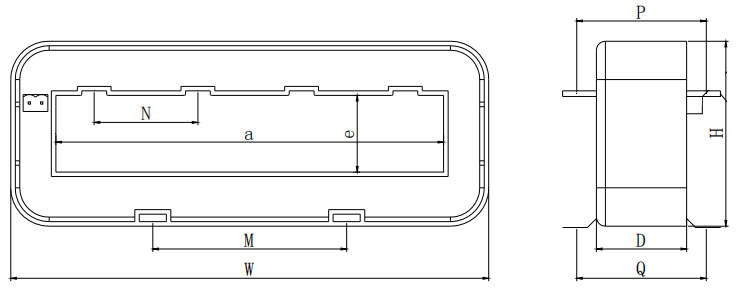

Dimension

Connection Mode
