General
M8: primary current is small, and the capacity is 2.5VA and below for measurement or protection. It is mostly used in small spaces such as low-voltage drawer cabinets.
Double M8: shell is made of flame-retardant and high-temperature resistant materials. The iron core is made of oriented cold-rolled silicon steel strip. The secondary conductor is made of high-strength electromagnetic enameled wire. The product has a novel structure, beautiful appearance and easy installation. The product has the characteristics of small size, light weight, high accuracy, large capacity, etc., suitable for small space places such as low-voltage drawer cabinets.

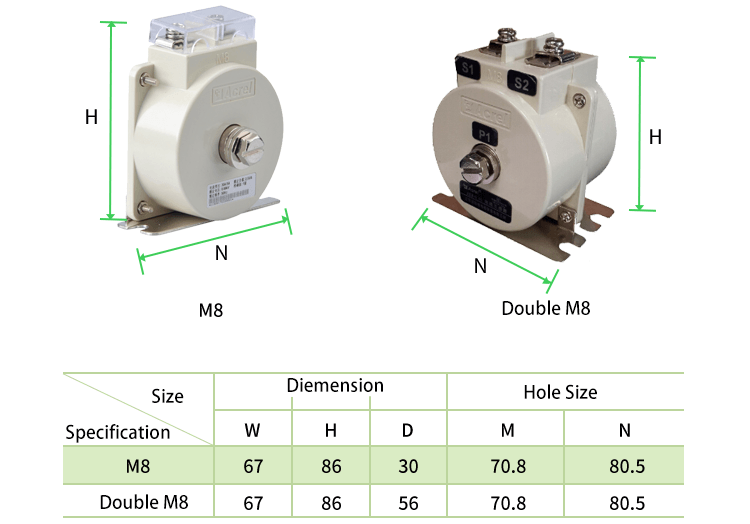

Dimension

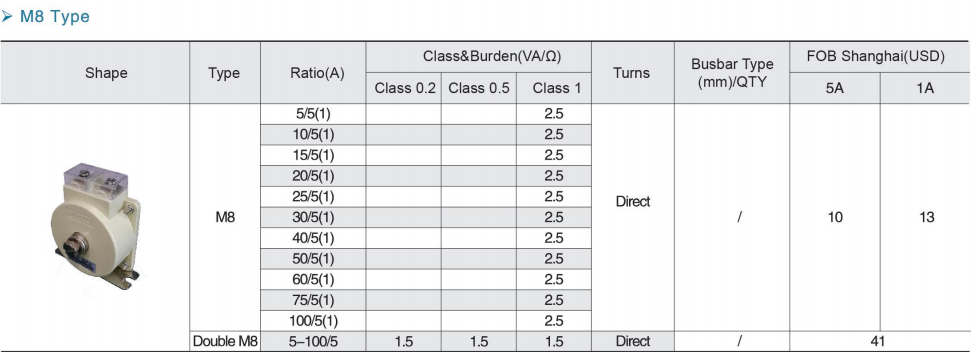

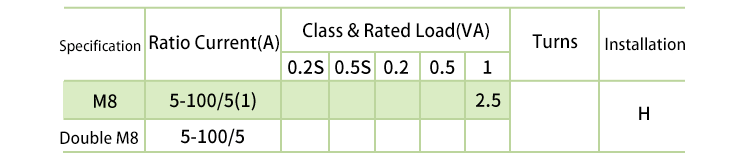

Parameter

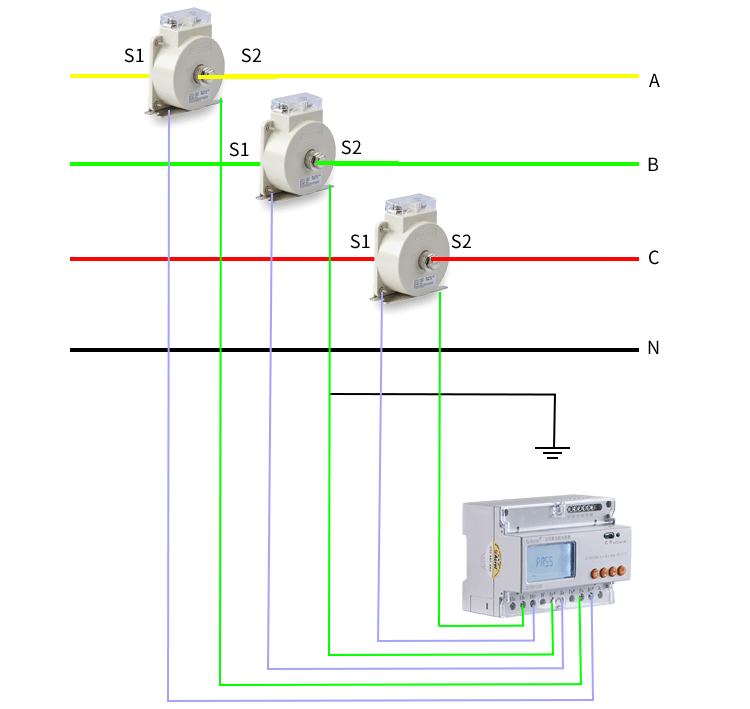

Wiring
Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PAKAGE
| Package dimensions(1 PC) 16*12.5*7.5cm
| Pakage Weight(1 PC) 0.4Kg
|
WHOLE BOX PAKAGE
| Package dimensions(39 PCS) 45.5*26*19.5cm
| Pakage Weight(39 PCS) 16.6kG
|
PRODUCT HS CODE
| 8504311000
|
ATTENTION ! The above packing and weight data are only refer to model AKH0.66-M8 For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
