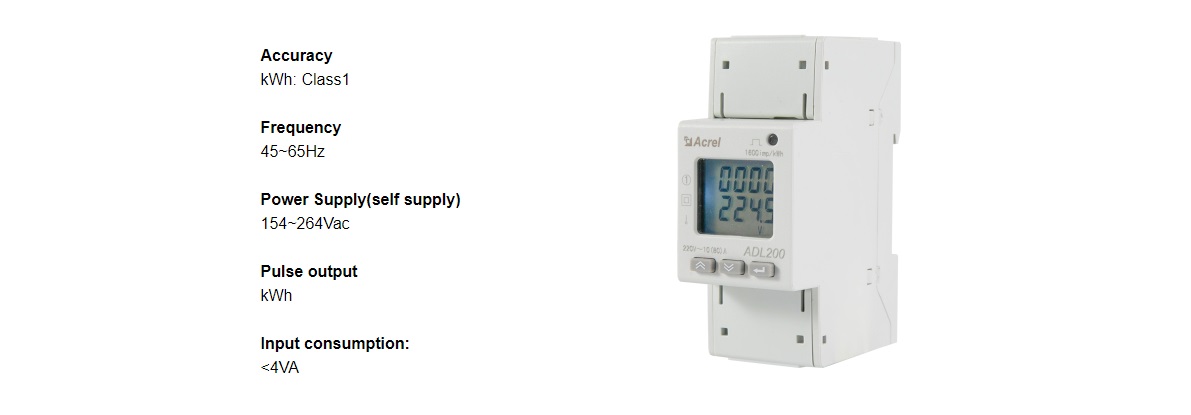

ADL200 Single Phase Din Rail Energy Meter

ADL200


●AC220V

●10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 1

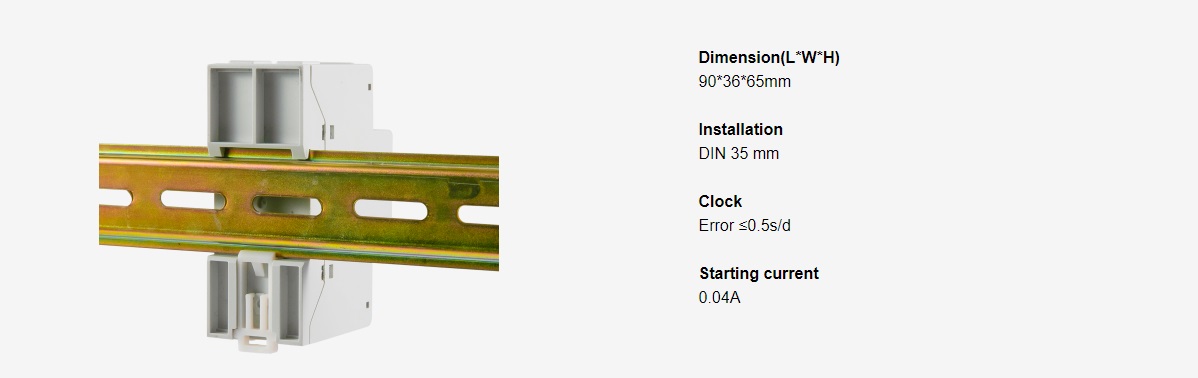

●DIN 35 mm

IEC62053-21、 IEC62053-22

Description

General


ADL200 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.



Functions




Technical Parameters


Voltage

Rated voltage

AC 220V

Rated frequency

50Hz

Consumption

<10VA

Current

Maximum current

80A

Starting current

0.01A

Consumption

<1VA

Measurement performance

Accuracy

kWh Class 0.5

Range

0~9999999999.99kWh

Clock

Accuracy

Error ≤0.5s/d

Active pulse

Width

80±20ms

Constant

1000imp/kWh,10000imp/kWh

Communication

Interface

RS485

Protocol

Mod bus-RTU

Temperature range

Work

-25℃~55℃

Storage

-40℃~70℃

Humidity

≤95%(No condensation)

Altitude

<2000m

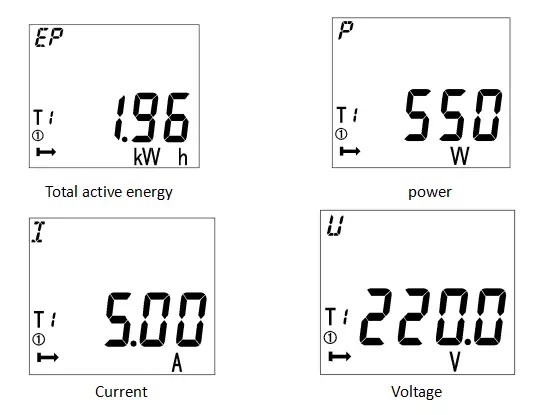

Display

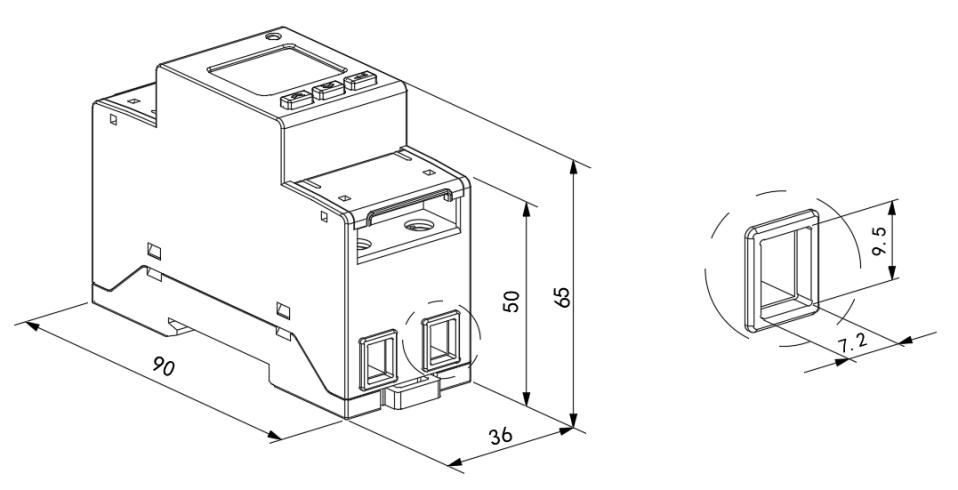

Dimension



Note:The torque of direct connect should not be greater than 4.0N·m.

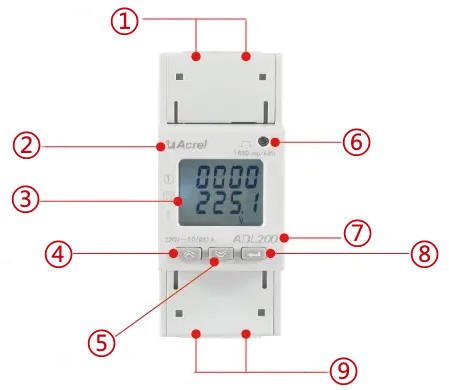

Front Panel





① Enter-wire

② Brand

③ Panel

④ Up Button

⑤ Down Button

⑥ Pluse Output

⑦ Model

⑧ Set Button

⑨ Out-wire




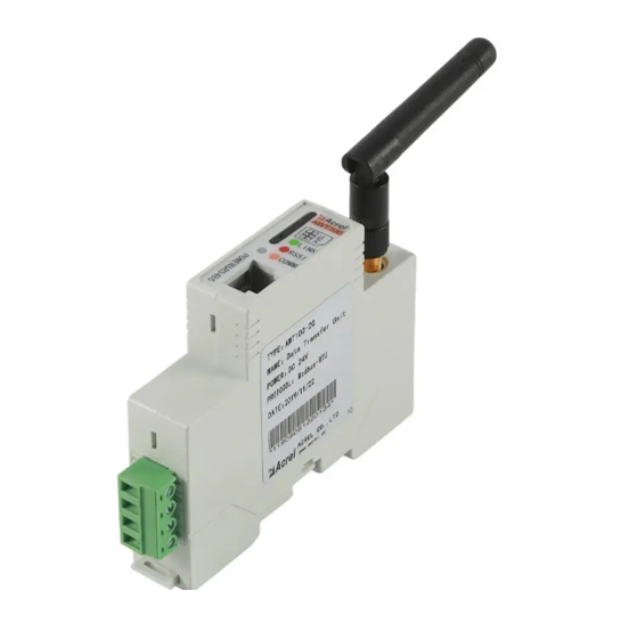

Network

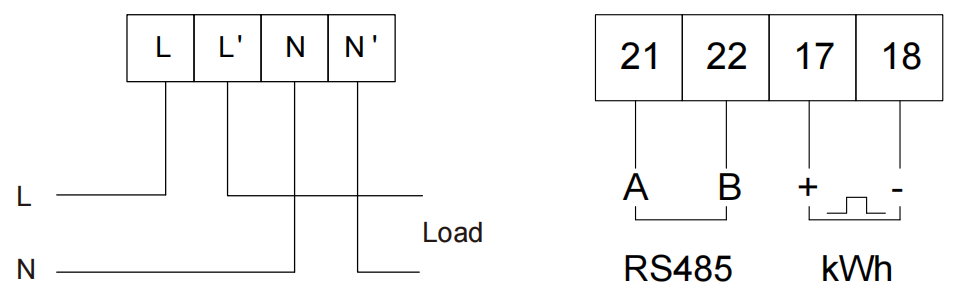

Installation








FAQ

Q:The display power or energy count is inaccurate after the meter powered on.

A:Switch the meter display interface to the power (active power P, power factor λ) interface, and check whether the power display is negative or not.And whether the power factor is between 0.9-0.95, and then check whether the incoming and outgoing wires of the current signal wire are connected reversely (that is, the current The incoming wire must be the same as the incoming wire end of the meter), and consistent with the wiring diagram on the meter.


Q:It cannot communicate with the host computer normally after the instrument powered on.

A:1. The voltage value between the communication output A and B of the measuring instrument should be between +(4.4-4.5)V .

   2. Check whether the communication wiring method is correctly wired according to the wiring diagram (that is, the communication terminal A/B of the instrument must be connected with Corresponding to communication serial port A/B);


Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(4 PC)

170*150*130mm

Net Weight(0.034KG/PC*4)

0.136KG


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

480*260*200mm

Package Weight(36 PCS)

2.304kG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model ADL200.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
