AIL150-4 4 channels Insulation Fault Locator

AIL150-4



● Insulation fault location in AC IT systems

● AIL150-4: 4 measuring channels

● AIL150-8: 8 measuring channels

● LED indicators: On, Comm

● CAN bus

● Auxiliary power supply: DC24V





Description

General

AIL150-4 4 channels Insulation Fault Locator in conjunction with AIM-M200 medical intelligent insulation monitor and ASG150 test signal generator,are designed for insulation fault location in medical IT systems.The locating current generated by ASG150 are detected using the integrated measuring current transformers and evaluated by the insulation fault locators.

Parameter

Auxiliary powerVoltageDC24V
Power consumption2VA
Monitored system
Rated voltage0-242V AC
Frequency45-60HZ
Location signals
Location voltage
＜25V
Location current
＜1mA
Fault location
Maximum channels4
Response time＜2s
Communication
BusCAN
ProtocolCustom protocol
Dimension(Unit:mm)

Wiring


Typical Connection

Application

Package

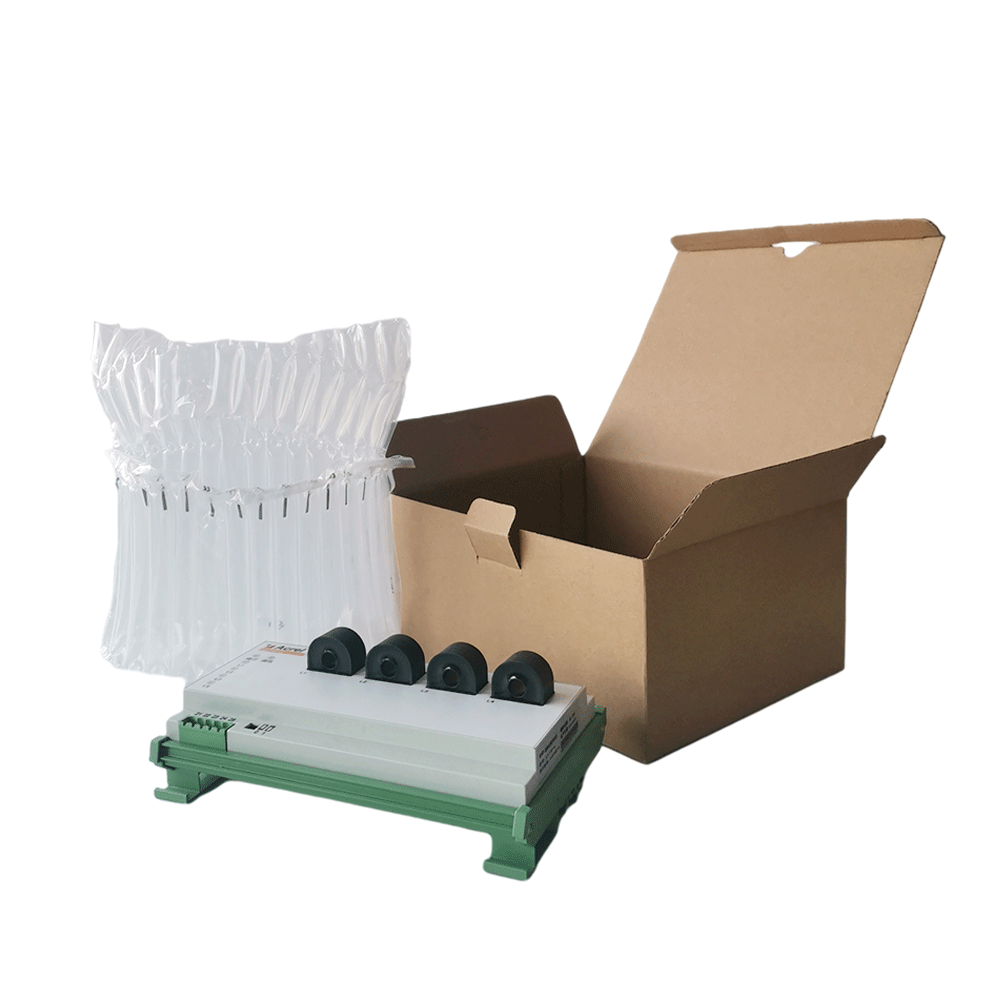

MINIMUM PACKAGE






MINIMUM PACKAGE


Package dimensions(1 PC)

220*185*110mm

Pakage Weight(1 PC)

0.46Kg

WHOLE BOX PACKAGE

Package dimensions(24PC)

615*480*395mm


Pakage Weight(24PC)

11.04Kg



PRODUCT HS CODE


9028309000

ATTENTION !

The above packing and weight data are only refer to model AIL150-4.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
