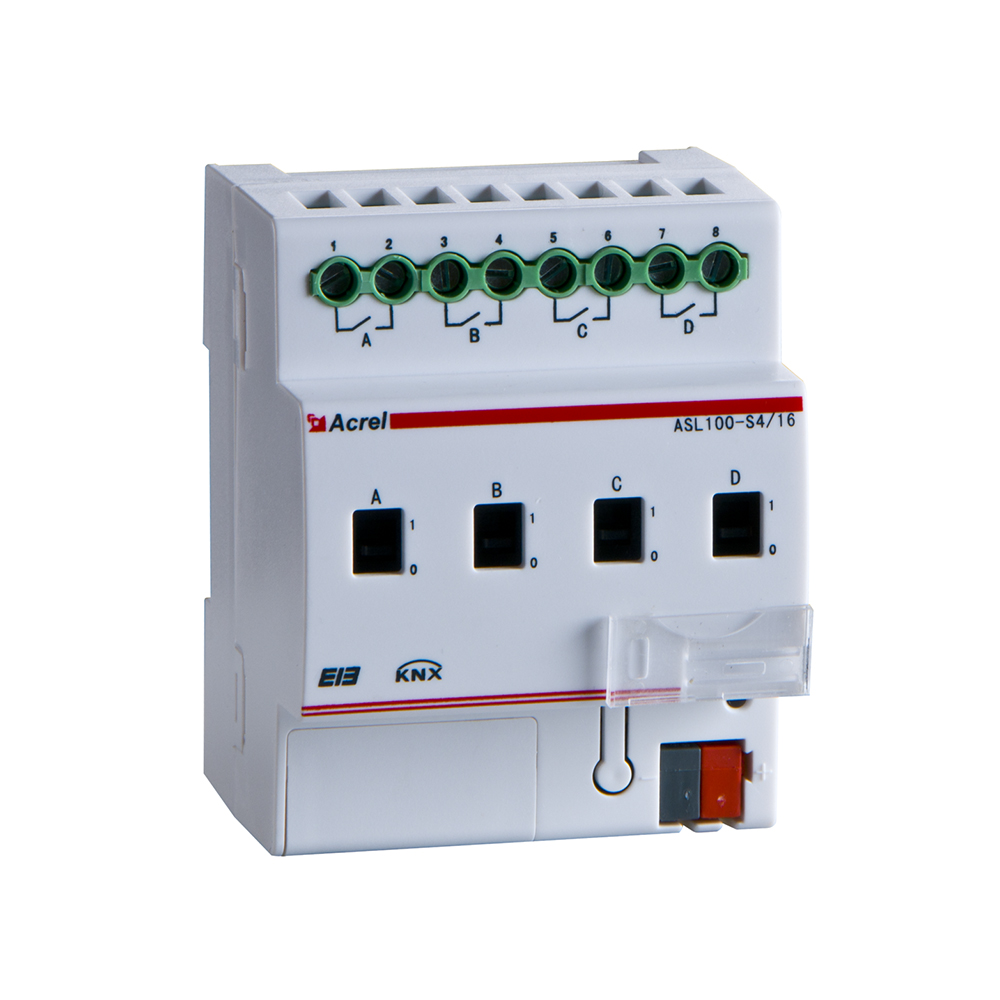

KNX Smart Lighting Switch Driver ASL100-S4/16

ASL100-S4/16


● RS485 (MODBUS -RTU)

● LED Indicator

● Output Current: 640mA

● Output Voltage: 30V




Description

General


ASL100-Sx/16 series of switch driver (hereinafter referred to as driver) is Acre-bus output control module. The product meets the rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System.


Functional features



1. Switch function

2. Time function, including stair light, flash and delay functions

3. Preset function

4. Scene control

5. Logic function
6. Threshold function

7. Heater control function





Parameters


Power supply feature

KNX bus feeder
DC21…30V
Power supply current
<12mA
Power consumption
<360mW
Load current
<16A
External connection
KNX-TP1
Use twisted-pair cable conforming to KNX standard
Wiring terminal at load end
Terminating with 0.5nm~0.6nm torque
Operation and display
interface
Programming key and
relevant indicator
LED indicator is in red when waiting for programming and
is in green during and after programming.
Temperature range

Operating temperature
-5℃~+45℃
Storage temperature
-25℃~+55℃
Transport temperature
-30℃~+70℃

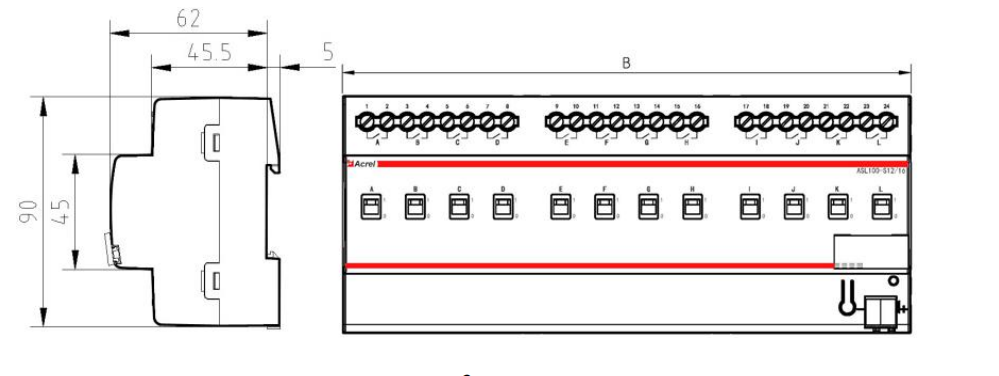

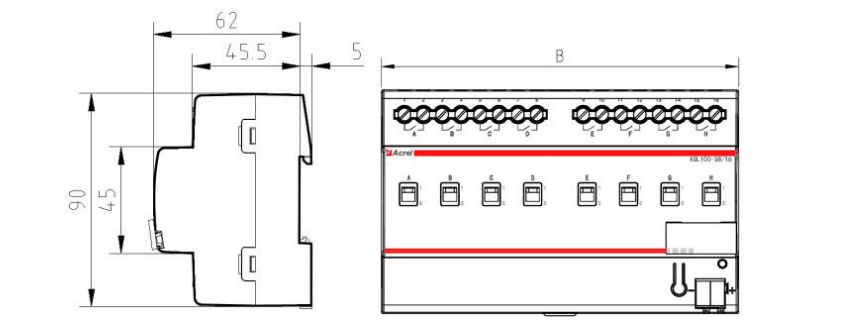

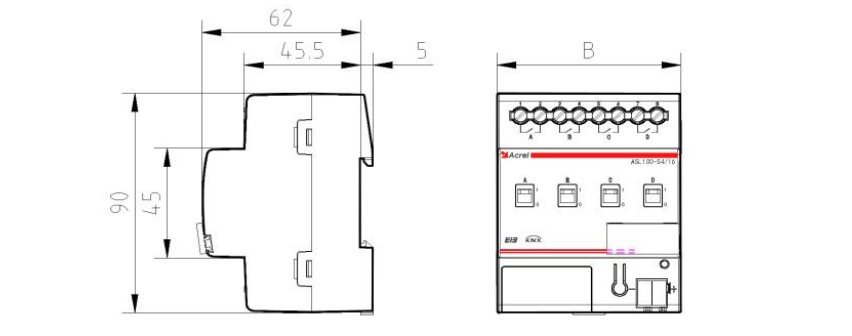

Dimension (mm)

ASL100-S4/16
72x90x62
ASL100-S8/16
144x90x62
ASL100-S12/16
216x90x62
Environmental
requirements
Maximum air humidity
95%
Installation
Standard 35mm track
installation
Installation


Wiring



S4/16

S8/16

S12/16



SPECIFICATIONS

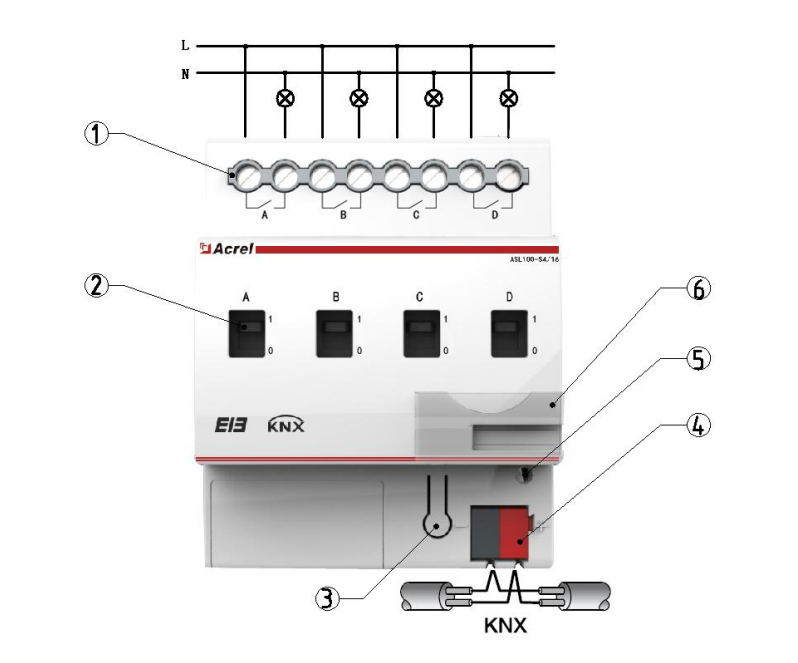

INDICATOR LIGHT DESCRIPTION



① Mains input terminal

② Relay manual operation hole
③ Programming key
④ KNX bus terminal
⑤ Running and programming indicator
⑥ Label

Installation notes: this module is applicable to 35mm track installation. You just need to clamp the moduleinto the track. It is ok toconnect the power input end withthe ordinary mains circuit. The grounding symbol isobserved on the wiring terminal. Thus, it is suggested to connect the terminal with PE line.Ensure to guarantee that the operation, installation, test and maintenance of the module are correct duringinstallation.

Network





Application





Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Package Weight(1 PC)

0.5Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

450*240*250mm

Package Weight(36 PCS)

18.5kG


PRODUCT HS CODE


8504401400

ATTENTION !

The above packing and weight data are only refer to model ASL100-S4/16.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!






MODEL

FUNCTION

UNIT PRICE (USD)

ASL100-P640/30

A standard power supply for the KNX/EIB system, coupling bus signals and monitoring overcurrent in KNX/EIB system. Power supply, Input: 85-265AC, Output: DC30V, 640mA, overload protection

295

ADL100-S2/16

Switch driver, 2 circuits control. (Max. current: 16A per unit)

150

ADL100-S4/16

Switch driver, 4 circuits control. (Max. current: 16A per unit)

265

ADL100-S8/16

Switch driver, 8 circuits control. (Max. current: 16A per unit)

370

ADL100-S12/16

Switch driver, 12 circuits control. (Max. current: 16A per unit)

445

AS100-SD2/16

0-10V dimming driver, 2 circuits control by KNX bus protocol (Max. current: 16A per unit)

235

AS100-SD4/16

0-10V dimming driver, 4 circuits control by KNX bus protocol (Max. current: 16A per unit)

325

AS100-TD2/5

The SCR dimming driver can adjust input voltage by phase angle control to realize LED dimming

235

AS100-WI4/230

It can realize different control requirements by active contact input (12-230VAC/DC)

148

AS100-DI4/230

It can realize different control requirements by passive contact input

148

AS100-T2/BM

It can sense both infrared and illuminance

175

AS100-T2/BR

It can sense both infrared and illuminance

175

AS100-F1/2

2 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

118

AS100-F2/4

4 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

148

AS100-F4/8

8 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

177

ASL100-KNX-IP

Gateway

896
