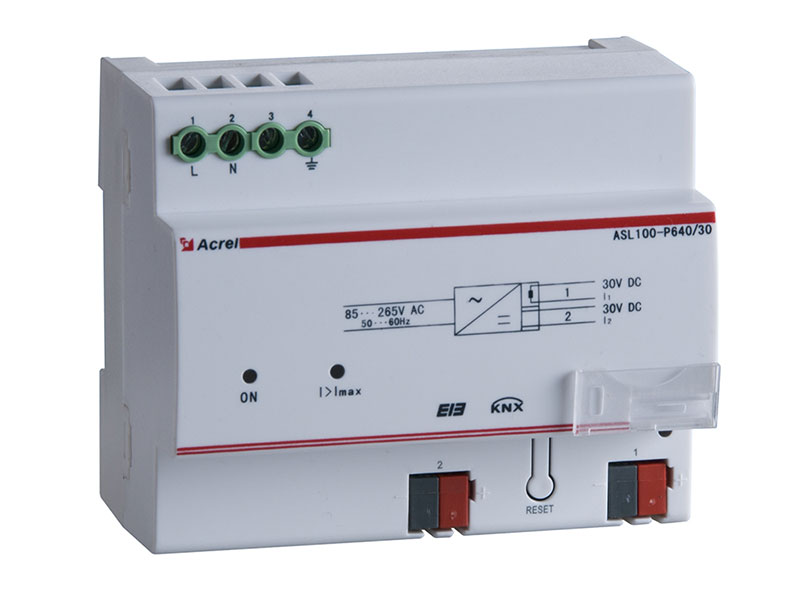

KNX Smart Lighting Power Supply ASL100-P640/30

ASL100-P640/30


● RS485 (MODBUS -RTU)

● LED Indicator

● Output Current: 640mA

● Output Voltage: 30V




Description

General


ASL100-P640/30 bus power module (hereinafter referred to as power supply) is a bus power supply based on Acrel-bus intelligent control system.



Functional features



1. Bus power supply based on Acrel-bus intelligent control system



2. Power module can power on 64 control modules



3. Provide voltage for the bus, Couple the bus signal and monitor the voltage of KNX/EIB system



4. External power module, such as IP module and touch screen and so on.


Parameters



Power input
Input voltage
85—265VAC 50/60Hz
Power consumption
<5W
Efficiency
≥75%
Power output
Bus power supply
30V DC Built-in choking coil output
Auxiliary power supply
30V DC No choking coil output
Output current
Bus current+auxiliary current≤640mA
External connection
KNX-TP1
Use twisted-pair cable conforming to KNX standard
Wiring terminal at load end
Terminating with 0.5nm~0.6nm torque
Operation and display interface
Programming key and relevant indicator
LED indicator is in red when waiting for programming and is in green during and after programming
Temperature range
Operating temperature
-5℃~+45℃
Storage temperature
-25℃~+55℃
Transport temperature
-30℃~+70℃
Environmental
requirements
Maximum air humidity
95%

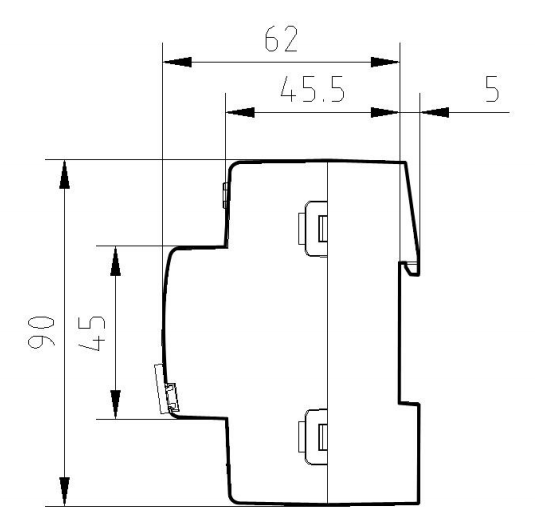

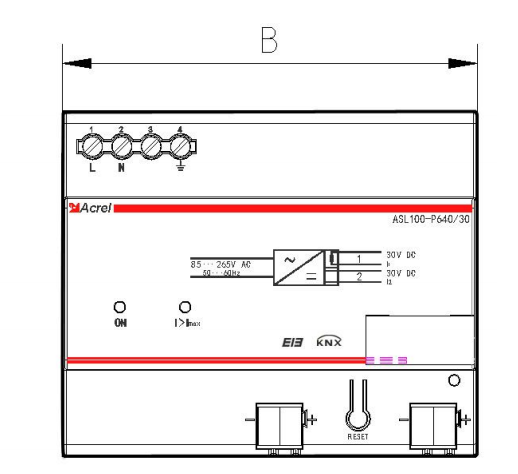

Dimension (mm)
108x90x69mm
Installation
Standard 35mm track installation


Wiring







SPECIFICATIONS

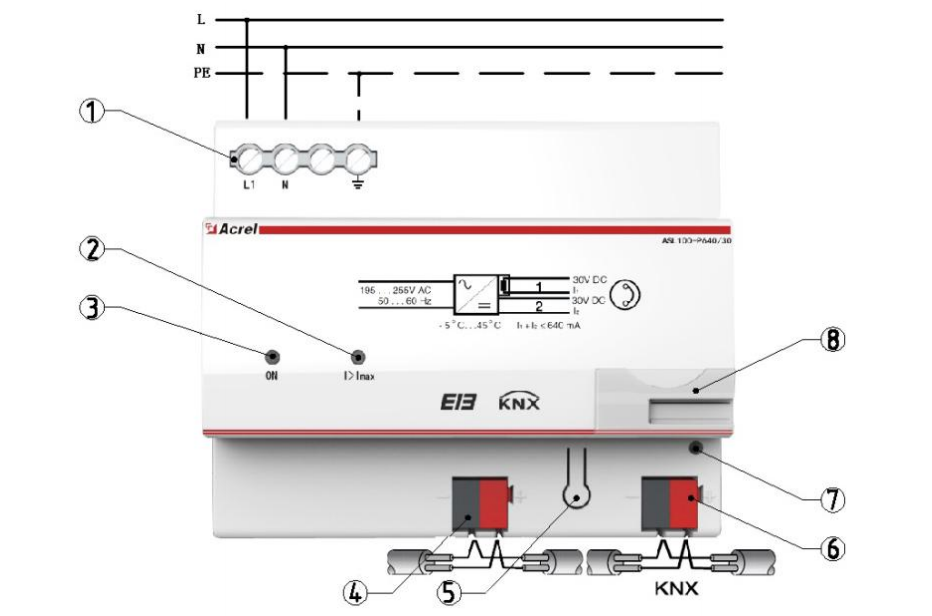

INDICATOR LIGHT DESCRIPTION


1 Mains input terminal
2 Overcurrent indicator
3 Running indicator
4 DC voltage wiring terminal
5 Reset key
6 KNX bus terminal (communication attached)
7 Reset indicator
8 Label

Installation notes: this module is applicable to 35mm track installation. You just need to clamp the moduleinto the track. It is ok toconnect the power input end withthe ordinary mains circuit. The grounding symbol isobserved on the wiring terminal. Thus, it is suggested to connect the terminal with PE line.Ensure to guarantee that the operation, installation, test and maintenance of the module are correct duringinstallation.

Network





Application





Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Package Weight(1 PC)

0.5Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

450*240*250mm

Package Weight(36 PCS)

18.5kG


PRODUCT HS CODE


8504401400

ATTENTION !

The above packing and weight data are only refer to model ASL100-P640/30.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!





MODEL

FUNCTION

UNIT PRICE (USD)

ASL100-P640/30

A standard power supply for the KNX/EIB system, coupling bus signals and monitoring overcurrent in KNX/EIB system. Power supply, Input: 85-265AC, Output: DC30V, 640mA, overload protection
