KNX Smart Lighting Dimming Driver ASL100-SD4/16

ADL100-SD4/16


● SD: 0-10v diming driver

2 loops and 4 loops

LED indicator

Maximum rated current is 16A

KNX bus feeder DC21~30V




Description

General


ASL100-SDx/16 series of dimming driver (hereinafter referred to as dimmer) is dimming module of Acrel-bus intelligent control system. The product meets the rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve intelligent lighting control of large buildings and public buildings.




Functional features



1. Switch function: manual operation control included



2. Dimming function: relative dimming and value dimming function



3. Preset function



4. Scene control


Parameters


Power supply feature

KNX bus feeder

DC21~30V
Power supply current
<12mA
Power consumption
<360mW
Load current
Max 16A
External connection
KNX-TP1
Use twisted-pair cable conforming to KNX standard

Wiring terminal at load
end
Terminating with 0.5nm~0.6nm torque
Operation and display
interface
Programming key and
relevant indicator
LED indicator is in red when waiting for programming
and is in green during and after
Temperature range
Operating temperature
-5℃~+45℃
Storage temperature
-25℃~+55℃
Transport temperature
-30℃~+70℃
Environmental
requirements
Maximum air humidity
95%

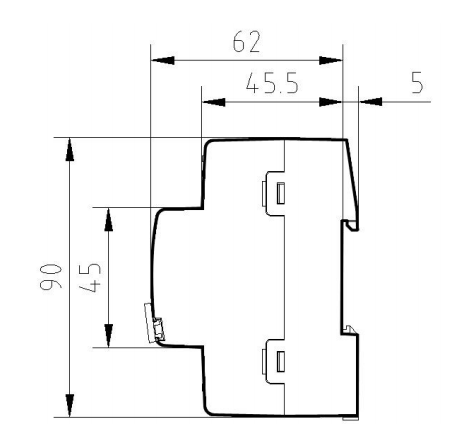

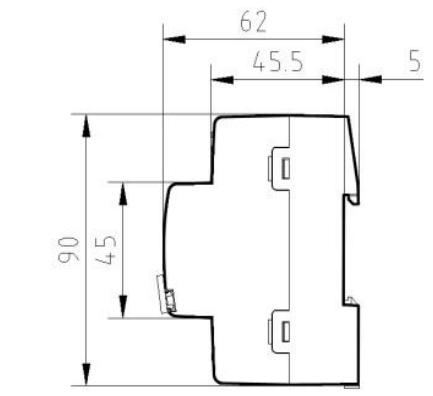

Dimension (mm)
36x90x62
Installation
Standard 35mm track installation



Wiring

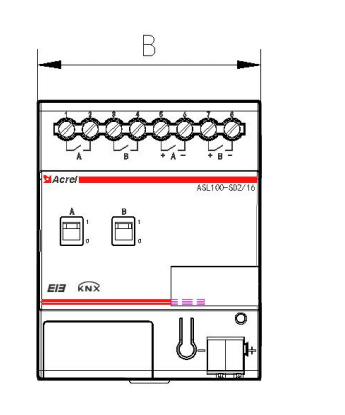

ASL100-SD2/16

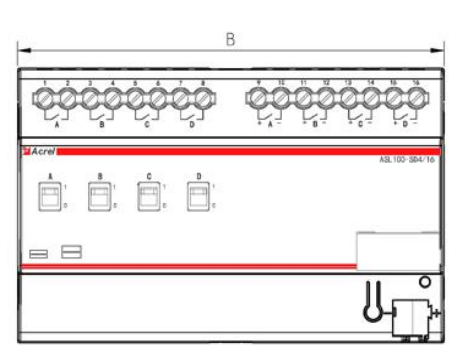

ASL100-SD4/16

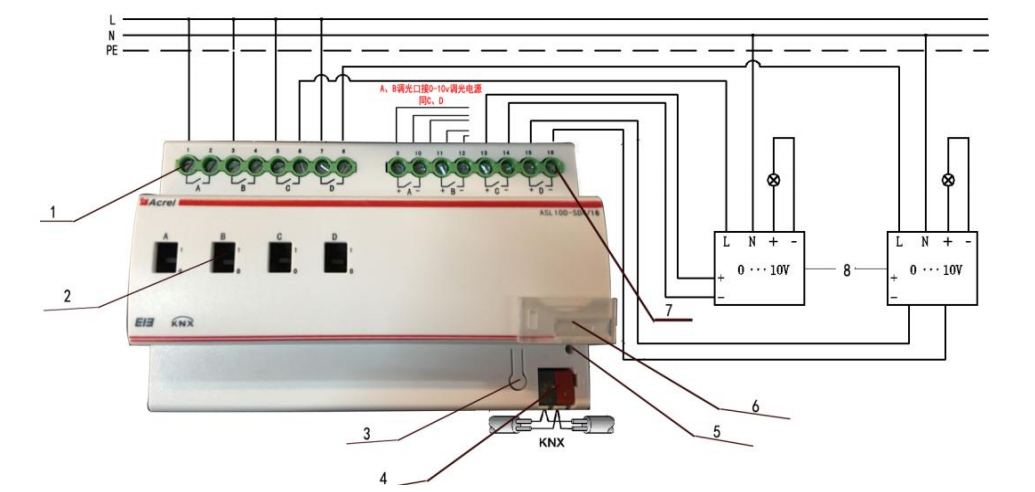

INDICATOR LIGHT DESCRIPTION




① Mains input terminal

②Relay manual operation hole

③Programming key

④KNX bus terminal

⑤Running and programming indicator

⑥Label

⑦0-10V dimming signal output

⑧0-10V diming power supply




0-10V dimming driver controls the load on-off as the diming module and outputs 0-10V dimming signals. Thedimmer receives the control message from the bus and then executes the corresponding actions according to the setparameters. With ETS programming, the dimmer can realize multiple control functions. The high voltage line is not changed and the lighting control is changed.

Network





Application





Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Package Weight(1 PC)

0.5Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

450*240*250mm

Package Weight(36 PCS)

18.5kG


PRODUCT HS CODE


8537101190

ATTENTION !

The above packing and weight data are only refer to model ASL100-SD4/16.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!





MODEL

FUNCTION

UNIT PRICE (USD)

ASL100-P640/30

A standard power supply for the KNX/EIB system, coupling bus signals and monitoring overcurrent in KNX/EIB system. Power supply, Input: 85-265AC, Output: DC30V, 640mA, overload protection

295

ADL100-S2/16

Switch driver, 2 circuits control. (Max. current: 16A per unit)

150

ADL100-S4/16

Switch driver, 4 circuits control. (Max. current: 16A per unit)

265

ADL100-S8/16

Switch driver, 8 circuits control. (Max. current: 16A per unit)

370

ADL100-S12/16

Switch driver, 12 circuits control. (Max. current: 16A per unit)

445

AS100-SD2/16

0-10V dimming driver, 2 circuits control by KNX bus protocol (Max. current: 16A per unit)

235

AS100-SD4/16

0-10V dimming driver, 4 circuits control by KNX bus protocol (Max. current: 16A per unit)

325

AS100-TD2/5

The SCR dimming driver can adjust input voltage by phase angle control to realize LED dimming

235

AS100-WI4/230

It can realize different control requirements by active contact input (12-230VAC/DC)

148

AS100-DI4/230

It can realize different control requirements by passive contact input

148

AS100-T2/BM

It can sense both infrared and illuminance

175

AS100-T2/BR

It can sense both infrared and illuminance

175

AS100-F1/2

2 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

118

AS100-F2/4

4 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

148

AS100-F4/8

8 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

177

ASL100-KNX-IP

Gateway

896
